RIO-4720x

PLC with Screw Terminals Ethernet/RS232

Customize Controller

The RIO-4720x PLC is a DIN rail mount unit with screw terminals and Ethernet. The RIO contains a fast RISC processor for handling I/O logic and is programmed using Galil's intuitive command language or using Galil's Ladder Interface software.
Each RIO unit is self-contained with numerous analog and digital I/O including: 16 high power optoisolated digital outputs, 16 optoisolated digital inputs and 8 12-bit 0-5V Analog inputs. The RIO can be configured to operate as a Modbus TCP master or slave, and multiple RIO units can be distributed on an Ethernet network allowing I/O expansion.
The RIO-47200 contains 200 lines of program space, 126 variables, 400 array elements, 2 PID loops, and 3 Ethernet handles. The RIO-47202 has expanded memory containing 400 lines of program space, 254 variables, 1000 array elements, 6 PID loops, and 5 Ethernet handles.
It can also easily communicate with other devices including Galil's DMC-40x0, DMC-41x3 and DMC-30000 Ethernet motion controllers.

rohs
Features
  • Programmable logic controller (PLC) that is smart, compact and cost-effective
  • (1) 10/100 Base-T Ethernet port  and (1) RS232 port up to 115/19.2 kbaud.
  • ModBus/TCP master or slave
  • Lots of I/O - Model comparison
    • 8 analog inputs
    • 8 analog outputs (option)
    • 16-bit analog output option
    • 16 optically isolated inputs
    • 16 optically isolated outputs
  • Analog PID Process Control Loops
  • Multitasking for concurrent execution of up to four application programs.
  • LED indicators for all digital I/O points
  • Contains RISC processor and memory for programming I/O events
  • Easy-to-use, 2-letter Galil programming language
  • Expanded variables, memory and control loops
  • Web interface and email capability for sending messages
  • Powered by Power-Over-Ethernet (PoE) or external 18-36V DC input
  • RIO-472xx: 7.19" x 3.52" with DIN tray;screw terminals
  • Screw terminals
  • Interface to RTD or Thermocouple temperature sensors with SCB-48x06
  • Galil's Ladder Interface Software is available for converting Relay Ladder Logic programs into deterministic code
  • Custom hardware and firmware options available

Use the Part Number Generator to help configure and price a system.

Part Number Description 1 pc 100 pc
RIO w/screw terminals, DIN & 5Vanalog in $390 $275
RIO w/screw terminals, DIN & 5Vanalog in and expanded memory $445 $330

Note: Pricing shown is for domestic purchases only.

Image Part Number Description
Application development, servo tuning, analysis, and backup.
Tools for communications and Software Developers

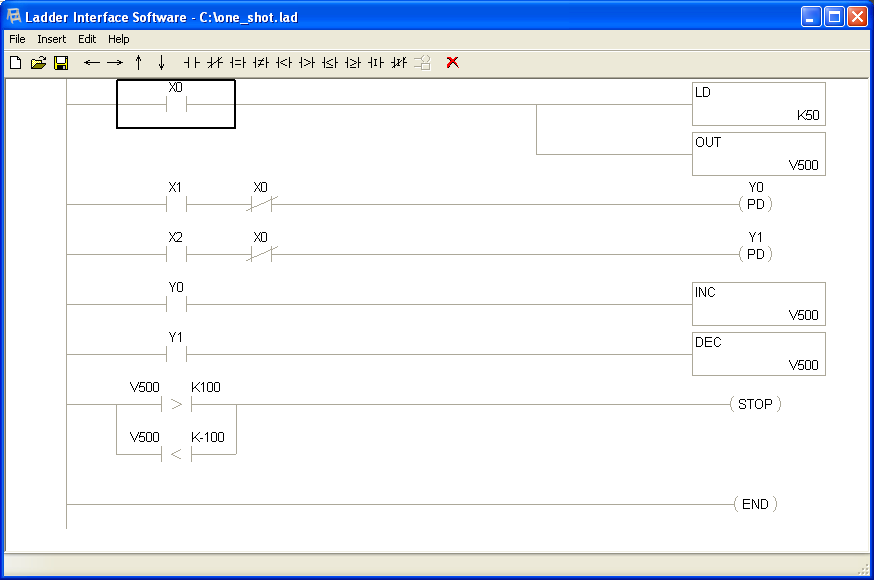

Ladder Logic Interface software for the RIO Pocket PLC
60 Watt Power Supply (2.5Amps at 24V)

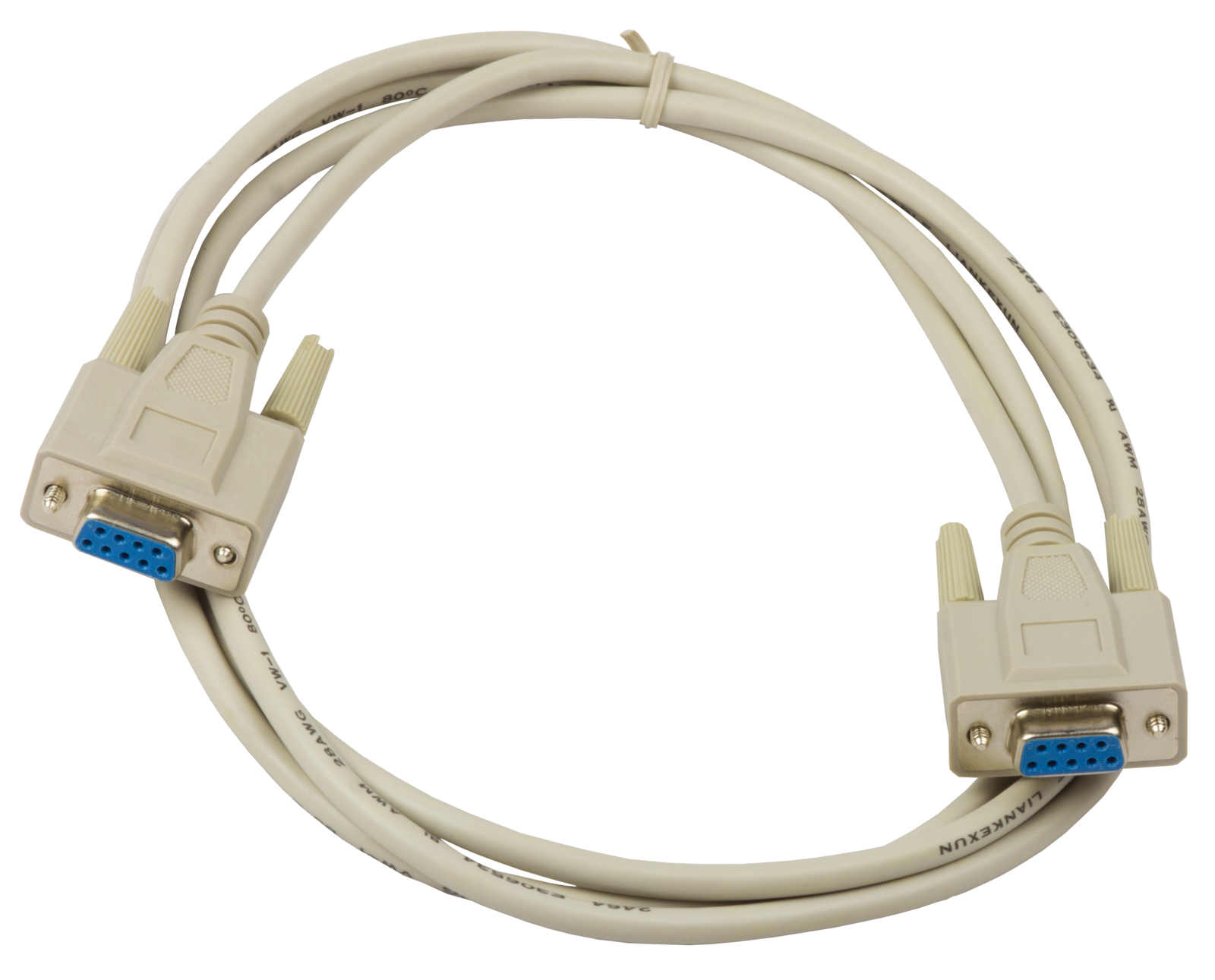

RS232 female to female straight through cable
