DMC-52320 EtherCAT Master Motor Controller
EtherCAT Master Multi-Axis Motion Controllers, 2, 4, 8, 16, or 32 axes

The DMC-52xx0 EtherCAT Master is Galil Motion Control's first 32 axis motion controller. It is a pure EtherCAT controller capable of controlling up to 32 drives and 2 IO modules on one EtherCAT Network in a small, space efficient package. The DMC-52xx0 makes configuration and programming easy with just a handful of EtherCAT configuration commands and Galil’s intuitive, two-letter programming language. The DMC-52xx0 is offered in 2, 4, 8, 16, and 32 axis formats. Coordinated moves can be done within banks of 8 allowing for minimal changes to Galil’s programming language. Galil supports a variety of EtherCAT drives to accommodate most applications. The DMC-52xx0 operates in Cyclic Synchronous Position mode (CSP). In this mode the servo control loop is closed on the EtherCAT drive while the Galil sends motion profile data at a 1 kHz rate. The DMC-52xx0 features 8 uncommitted opto-isolated inputs and 8 uncommitted opto-isolated high power outputs. It also includes 8 uncommitted analog inputs and 8 uncommitted analog outputs. One 100 Mbps Ethernet port and one USB (serial) port are provided for communication with a host PC or external devices.


  • Available in 2, 4, 8, 16, and 32 axis configuration
  • (1) 10/100BASE-T Ethernet port; (1) EtherCAT Port
  • USB port
  • EtherCAT cycle time 1ms
  • Cyclic Synchronous Position mode (CSP)
  • Modes of motion include jogging, point-to-point positioning, position tracking, contouring, linear and circular interpolation, electronic gearing, ECAM, and PVT
  • Ellipse scaling, slow-down around corners, infinite segment feed and feed rate override
  • Multitasking for concurrent execution of up to eight application programs
  • Non-volatile memory for application programs (4000 Lines), variables (510), and arrays (24000)
  • Inputs including forward limits, reverse limits, and homing inputs are located on drives that support these inputs
  • Uncommitted I/O:
    • 8 optically isolated inputs
    • 8 optically isolated high powered outputs
    • 8 uncommitted analog inputs
    • 8 uncommitted analog outputs
    • More I/O available with the RIO-47xxx or RIO-574x0
  • Accepts single 120 - 240 VAC input
  • Communication drivers for Windows and Linux

Price List

Part Number Description 1pc / 100pc
2-axis Ethernet/EtherCAT Master $1,445 / $895
4-axis Ethernet/EtherCAT Master $1,795 / $995
8-axis Ethernet/EtherCAT Master $2,195 / $1,095
16-axis Ethernet/EtherCAT Master $2,595 / $1,295
32-axis Ethernet/EtherCAT Master $2,995 / $1,495
16-bit ADC / DAC option $200 / $120

Cables and Accessories

Image Part Number Description
Application development, servo tuning, analysis, and backup.
Tools for communications and Software Developers

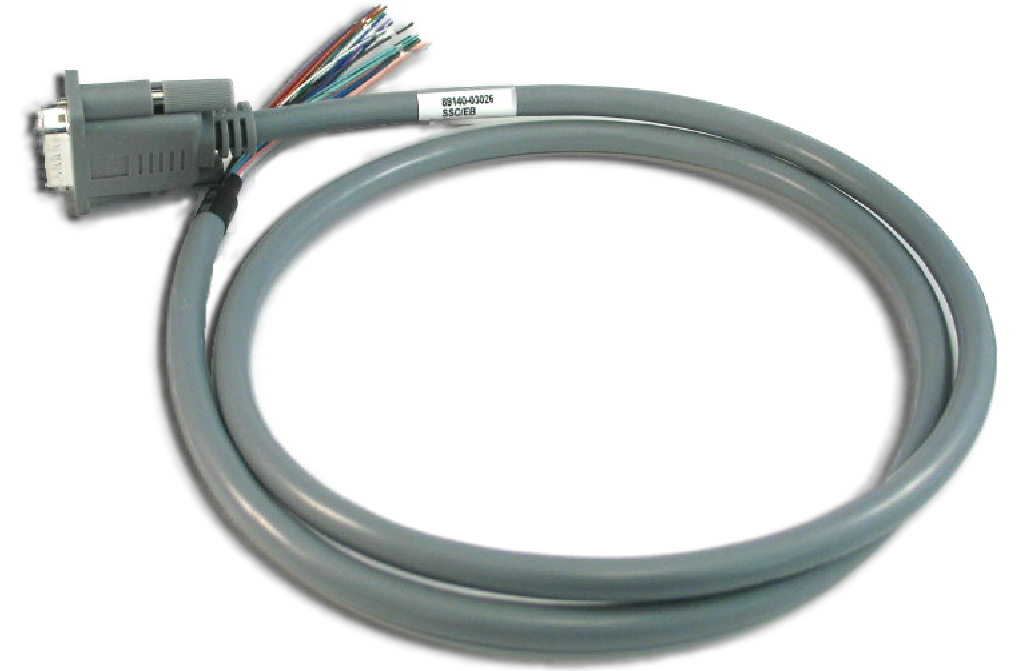

26-pin HD female D to discrete wires-1 meter
26-pin HD male D to discrete wires-1 meter
2 meter USB 2.0 A male to B male cable
3 meter USB 2.0 A male to B male cable

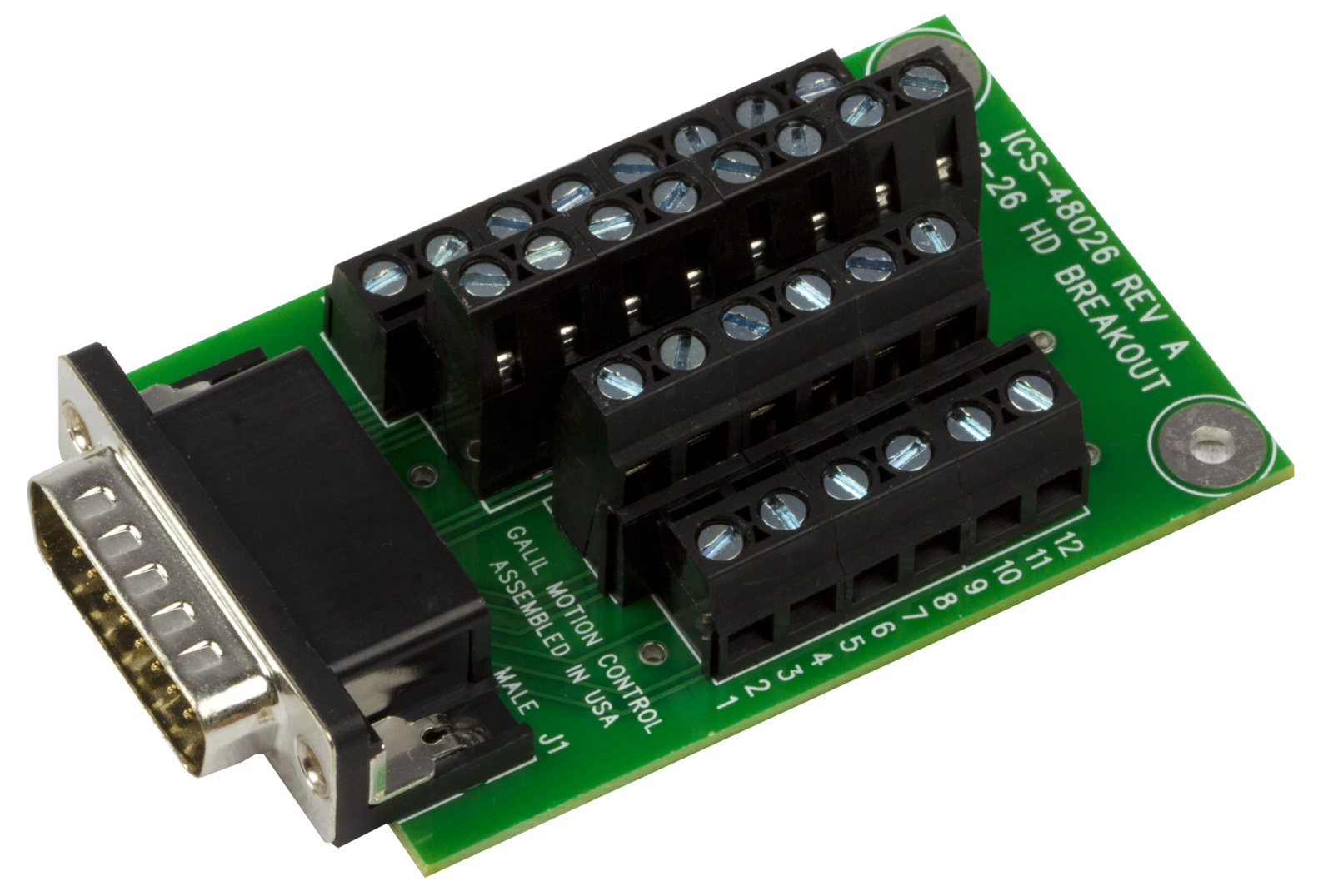

26-pin D HD female to screw terminals
26-pin D HD male to screw terminals


Supported Drives

Supported IO

  • Galil's EDD-3701x
  • AMC-Logo-0300px.jpg     DZEANTU    ►Website
  • Copley XenusPLUS
  • Delta Electronics ASD-A2
  • ​Estun ProNet Servo Drive
  • LS Mecapion L7NH
  • LS Mecapion Pegasus
  • Panasonic Minas A5B
  • Parker P Series
  • Sanyo-Denki SANMOTION R (contact Galil)
  • Yaskawa Sigma-5
  • Yaskawa Sigma-7
