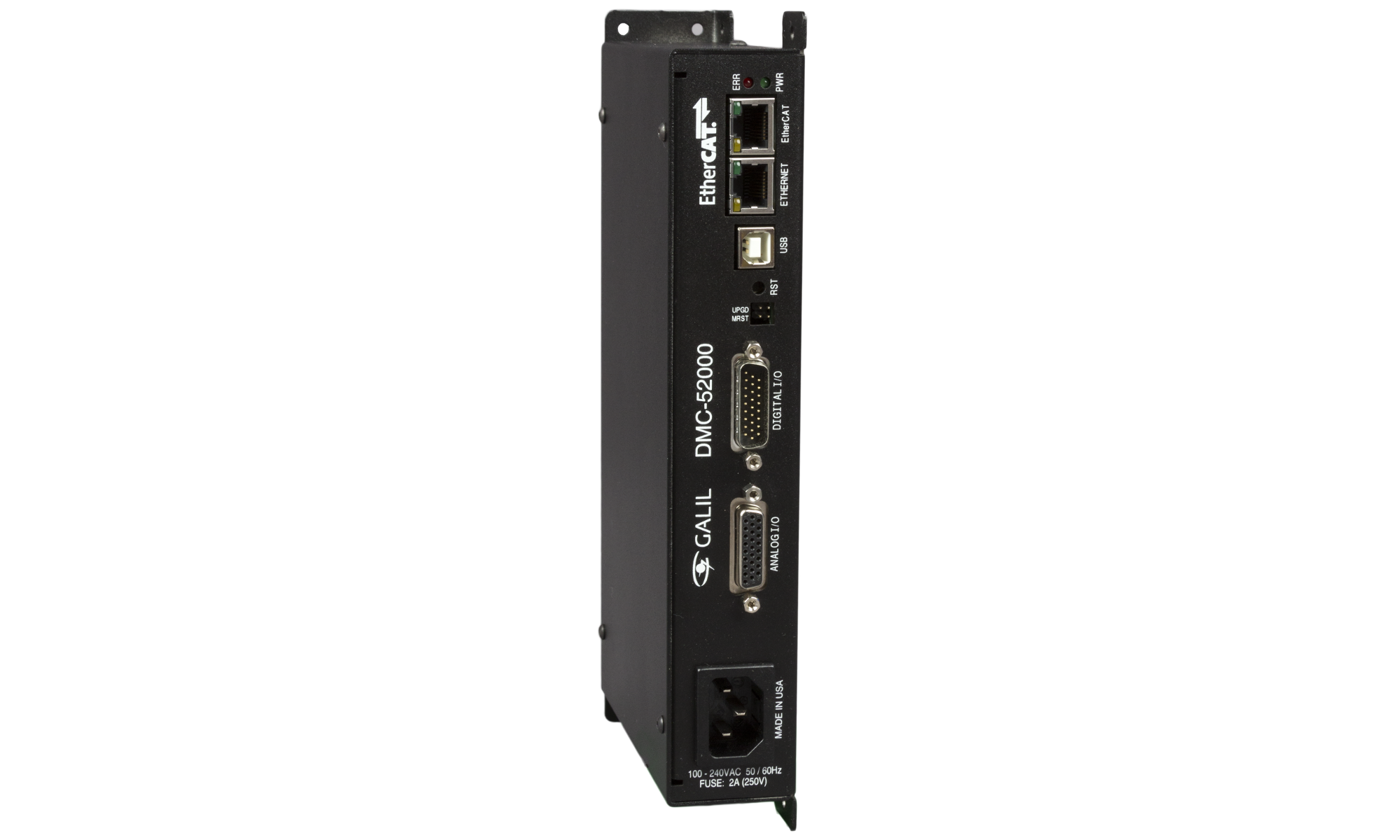

EtherCAT Motion Controller
DMC-52xx0
EtherCAT master controller supporting 2 to 32 axes. A scalable solution for large-scale industrial automation and multi-drive applications.
Don't see exactly what you need? We offer full customization capabilities and can implement any requirements. Talk to our experts →
Supported EtherCAT Drives
The DMC-52000 supports up to 32 axes via EtherCAT using the EDD-37010 EtherCAT Smart Drive.
External EtherCAT Drives
The DMC-52000 is also compatible with a wide range of external EtherCAT drives.
- AMC DZEANTU
- Copley XenusPLUS P
- Delta Electronics ASD-A2
- Estun ProNet Servo Drive
- LS Mecapion L7NH
- LS Mecapion Pegasus
- Mitsubishi MR-J4*
- Panasonic Minas A5B
- Panasonic Minas A6B
- Parker P Series
- Sanyo-Denki SANMOTION R*
- Yaskawa Sigma-5
- Yaskawa Sigma-7
* Please contact our application engineering team to confirm compatibility with your specific configuration.
Specifications
Number of Axes
2, 4, 8, 16, or 32 axes
Power Supply
120-240 VAC
EtherCAT Cycle Time
1 ms
Servo Update Rate
1 kHz
Ethernet
(1) 10/100BASE-T + (1) EtherCAT Port
USB
Host PC or external device communication
Digital Inputs
8 optically isolated
Digital Outputs
8 optically isolated high-powered
Analog Inputs
8 uncommitted (16-bit ADC upgrade available)
Analog Outputs
8 uncommitted (16-bit DAC upgrade available)
Application Programming
- Memory: 4000 lines
- Array Elements: 24,000
- Variables: 510
- Threads: 8
Cables

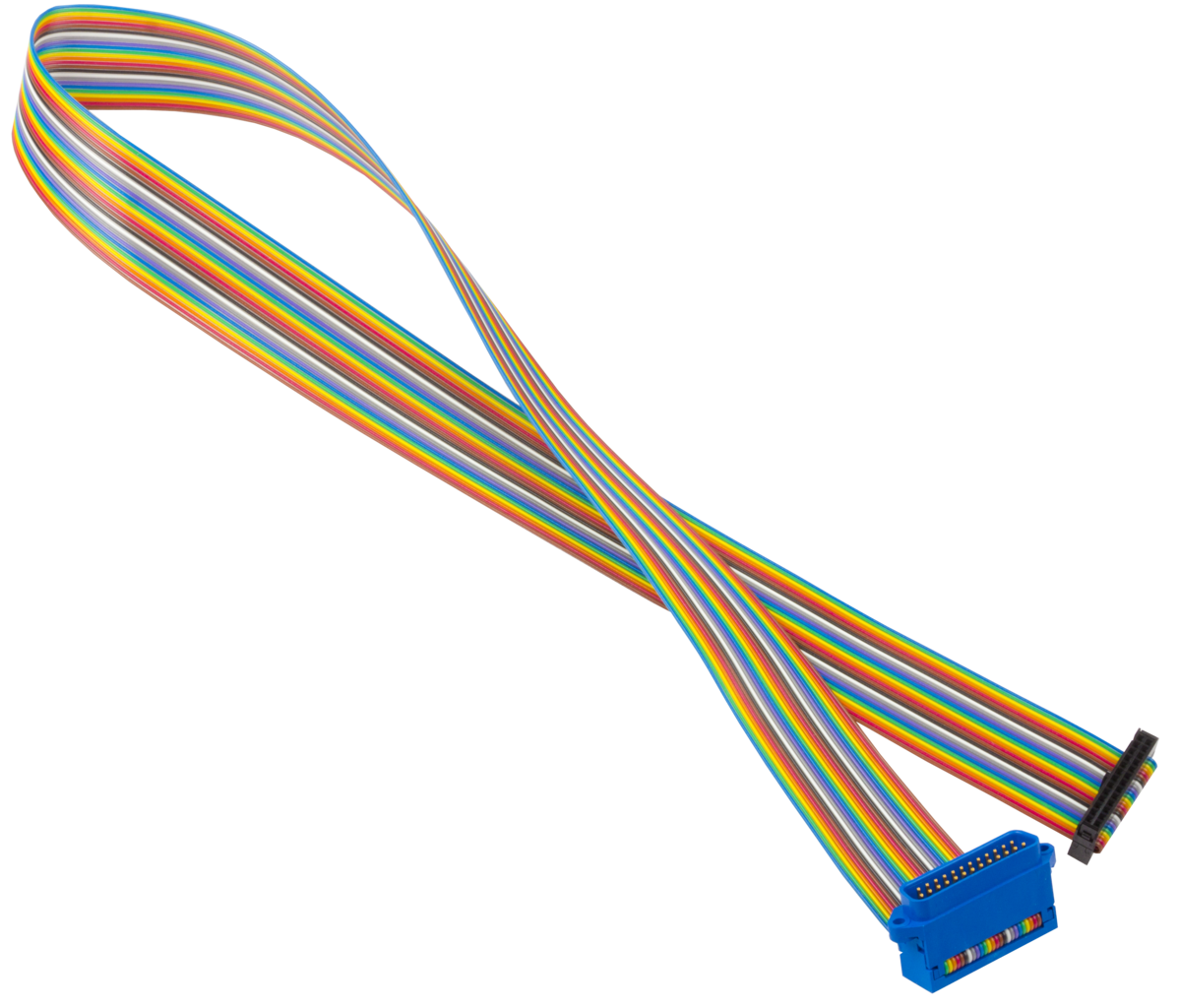

CABLE-26F-1M
26-pin HD female D to discrete wires-1 meter
CABLE-26M-1M
26-pin HD male D to discrete wires-1 meter
CABLE-USB-2M
USB Type A to Type B cable - 2 meter
CABLE-USB-3M
USB Type A to Type B cable - 3 meter
Interconnects
ICS-48026-F
26-pin D HD female to screw terminals
ICS-48026-M
26-pin D HD male to screw terminals
