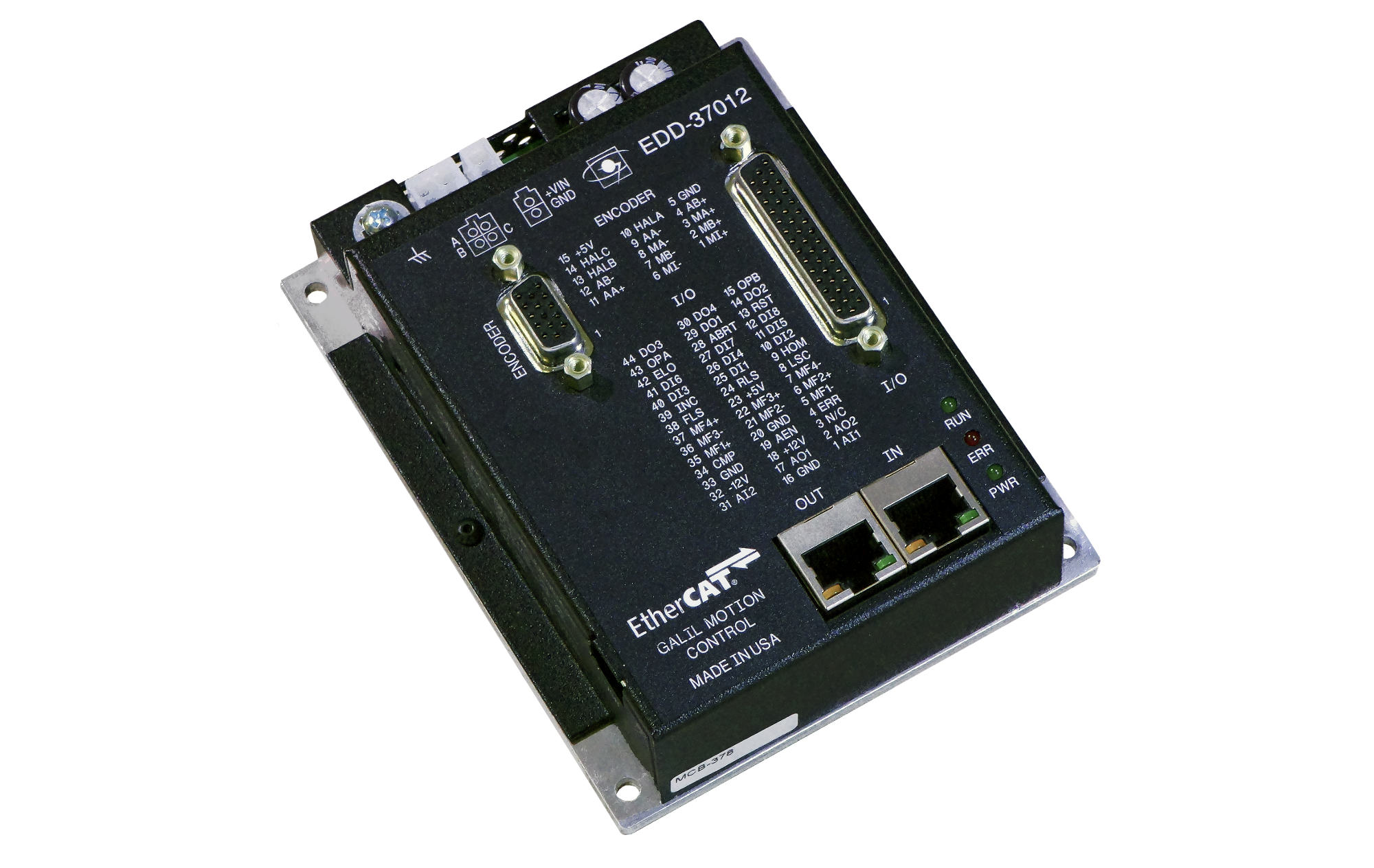

EtherCAT Drive

EDD-37010

Single-axis EtherCAT smart drive with built-in amplifier. Supports brushed, brushless, and stepper motors with daisy-chain connectivity.

Resources

Download Datasheet

Setup Guide User Manual Command Reference Firmware GDK - Setup & Tuning Software Software API ESI File CAD Drawings Supported Motor Types Amplifiers Modes of Motion Accessories

Configure & Quote

Don't see exactly what you need? We offer full customization capabilities and can implement any requirements. Talk to our experts →

Supported Motor Types

Stepper Motors

Brushed Motors

3-Phase Brushless Motors

2-Phase Brushless Motors

Internal Amplifiers

EDD-37012 800W Sinusoidal Amplifier

EDD-37016 1.4A Microstepping Drive - Full, Half, 1/4, 1/16

EDD-37017 6A Microstepping Drive (1/256)

Modes of Motion

Independent Axis Positioning

Independent Jogging

Position Tracking

Linear Interpolation

Vector Mode: Linear and Circular Interpolation

Specifications

Number of Axes

Digital Inputs

Digital Outputs

Analog Inputs

12-bit (2) with optional 16-bit

Analog Outputs

16-bit (2)

Supported Encoders

Quadrature

Power Supplies

PSR-12-24

12A-24 VDC Power supply

$275 / $200 at 100+

PSR-6-48

6A-48 VDC Power Supply

$275 / $200 at 100+

PSR-30-24

30A-24 VDC Power Supply

$565 / $410 at 100+

PSR-15-48

15A-48 VDC Power Supply

$565 / $410 at 100+

Cables

CABLE-15-1M

15-pin HD male D to discrete wires-1 meter

$30 / $21 at 100+

CABLE-15-2M

15-pin HD male D to discrete wires-2 meter

$40 / $26 at 100+

CABLE-44M-1M

44-pin HD male D to discrete wires-1 meter

$45 / $40 at 100+

CABLE-44M-2M

44-pin HD male D to discrete wires-2 meter

$65 / $56 at 100+

Interconnects

ICS-48015-M

15-pin D HD male to screw term

$53 / $37 at 100+

ICS-48044-M

44-pin D HD male to screw terminals

$79 / $53 at 100+
