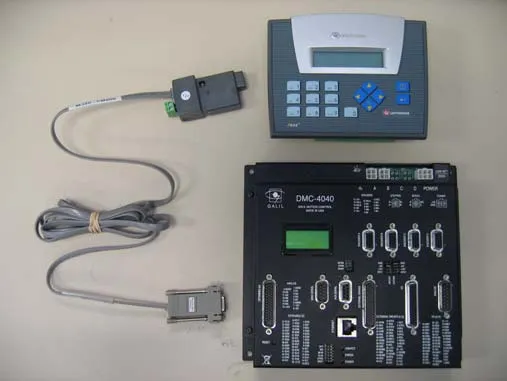

Interfacing to a Galil Controller with a Unitronics Jazz PLC

Learn how to establish communication between Galil motion controllers and Unitronics Jazz PLCs using standard RS-232 ASCII protocols. This application note covers hardware connections, PLC configuration, ladder programming, and provides example code for implementing operator interfaces with external I/O processing capabilities. Ideal for applications requiring more flexibility than basic HMIs but less complexity than custom PC software solutions.
