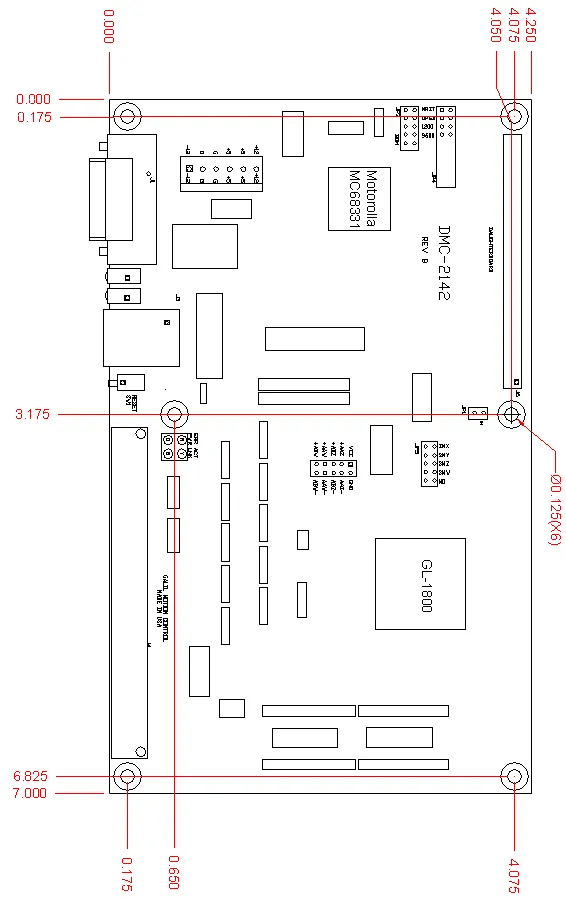

DMC-21x2 Board Mounting Dimensions

This application note provides detailed mounting dimensions and specifications for the DMC-21x2 series motion controllers, including the DMC-2112, DMC-2142, DMC-2152, and DMC-2182 models. Engineers will find precise mechanical drawings and measurements needed for proper board installation and enclosure design. Essential reference for system integrators planning motion control installations.
