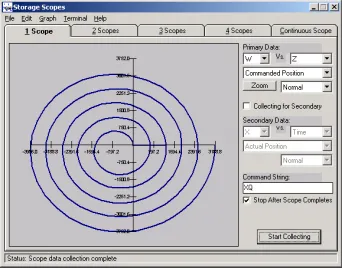

Creating a Spiral Motion Path

Learn two practical methods for implementing spiral motion trajectories with Galil motion controllers. This application note demonstrates both a gearing-based approach using dummy axes and the CR command, and an alternative vector programming method using VP segments with calculated coordinates. Engineers will discover how to generate smooth spiral profiles, understand the trade-offs between each approach, and implement the optimal solution based on their available axis resources and precision requirements.
