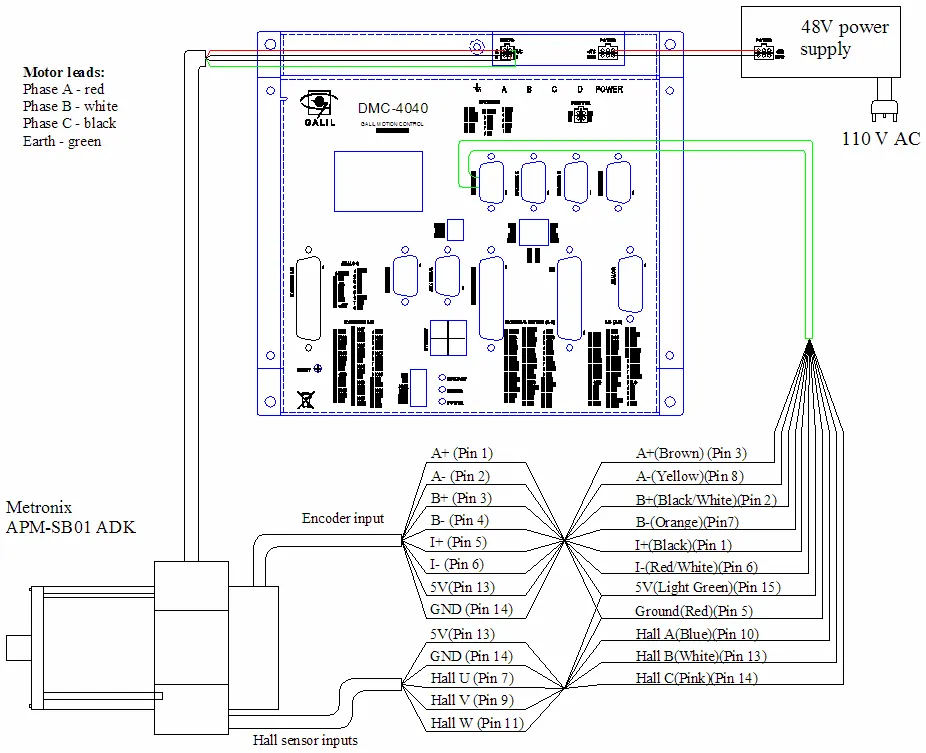

Connecting Metronix Motors to Galil Amplifiers

Learn how to connect a Metronix APM-SB01 ADK servo motor to Galil DMC-40x0 Accelera series controllers with AMP-43040 drives. This application note covers hardware requirements, system setup procedures, and optimal PID tuning parameters for achieving the best step response performance under no-load conditions.
