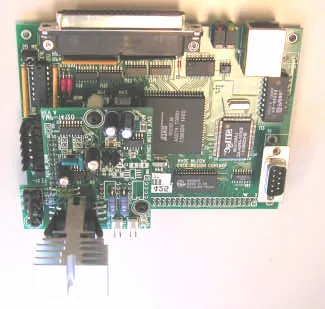

AMP-141x0 20W Linear Servo Amplifier for DMC Motion Controllers

Learn about the AMP-141x0 linear brush servo amplifier that delivers up to 20W per axis for DMC-14x5 and 34x5 motion controllers. This application note covers the amplifier's two factory-configurable gain options (1A or 100mA per axis), wiring configurations, pinout specifications, and mounting details for both single-axis and dual-axis versions.
