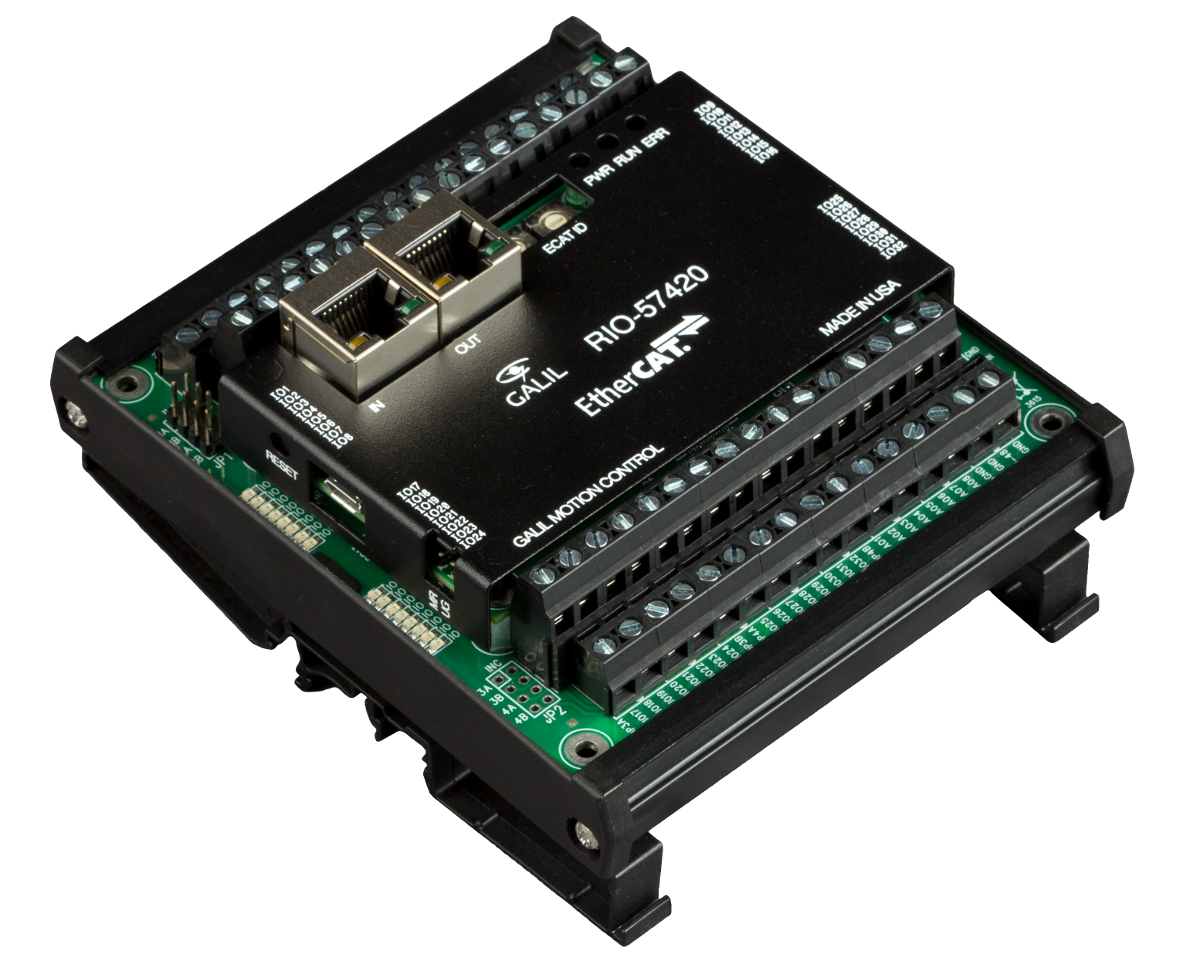

RIO-57400
EtherCAT remote I/O slave module with digital and optional analog I/O
Don't see exactly what you need? We offer full customization capabilities and can implement any requirements. Talk to our experts →
I/O Specifications
 |  |  |  | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Specification | 47100 | 47120 | 47142 | 47162 | 47200 | 47202 | 47300 | 57410 | 57420 |
| Opto-isolated digital inputs | 16 | 16 | 16 | 40 | 16 | 16 | 24 | 16 | 16 |
| 25mA sinking, isolated digital outputs | 8 | 8 | - | - | - | - | - | - | - |
| 500mA sourcing, isolated digital outputs | 8 | 8 | 16 | - | 16 | 16 | 24 | 16 | 16 |
| 300mA sourcing, digital outputs | - | - | - | 24 | - | - | - | - | - |
| Analog inputs | 8 0-5V | 8 Configurable: ±10V, ±5V, 0-5V | 8 Configurable: ±10V, ±5V, 0-5V | 8 Configurable: ±10V, ±5V, 0-5V | 8 Configurable: ±10V, ±5V, 0-5V | 8 Configurable: ±10V, ±5V, 0-5V | 8 Configurable: ±10V, ±5V, 0-5V | - | 8 Configurable, 12-bit, 16-bit option |
| Analog outputs | 8 0-5V | 8 Configurable: ±10V, 0-5V | 8 Configurable: ±10V, 0-5V | 8 Configurable: ±10V, 0-5V | - | - | 8 Configurable: ±10V, 0-5V | - | - |
General Specifications
| | | | | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Specification | 47100 | 47120 | 47142 | 47162 | 47200 | 47202 | 47300 | 57410 | 57420 |
| Power (DC) | 18-36V, PoE | 18-36V, PoE | 9-48V | 9-48V | 18-36V, PoE | 18-36V, PoE | 9-48V | 18-36V DC | 18-36V DC |
| Dimensions | 3.88" x 4.2" x 1.10" | 3.88" x 4.2" x 1.10" | 3.88" x 4.2" x 1.02" | 3.88" x 4.65" x 1.02" | 8.15" x 3.52" x 2.1" with DIN tray | 8.15" x 3.52" x 2.1" with DIN tray | 7.14" x 4.94" x 2.79" with DIN tray | 4.24" × 4.81" × 2.35" | 4.24" × 4.81" × 2.35" |
| Modbus Support | - | - | - | ||||||
| Encoder input option | - | - | QUAD, BiSS, SSI | QUAD, BiSS, SSI | - | QUAD, BiSS, SSI | - | - | - |
| 16-bit ADC/DAC option | - | - | - | - | |||||
| Real time clock option | - | - | - | - | - | - | |||
Power Supplies
PS-2.50-24
60 Watt Power Supply (2.5Amps at 24V)
