Galil introduces its newest high power, switching power supplies, the PSR-30-24 and PSR-15-48. At a rated output power of 750 Watt, the PSR-30-24 and PSR-15-48 models are capable of providing up to 30 Amp at 24 Volt and 15 Amp at 48 Volt respectively. Both models include Overload, Over Voltage and Over Temperature protection and a shunt regulator with blocking diode, making these supplies ideal for motion control applications where voltage regeneration is a common occurrence.
Configurable for either 110 or 240 VAC input, these supplies are up to 95% efficient under the recommended operating conditions of -30 to +50 C ambient temperature and the addition of external heat sinking. They can also be operated without external heat sinking with a reduction in the output current capabilities. See the datasheet linked below for ratings and dimensions.
PSR Series Power Supply Datasheet

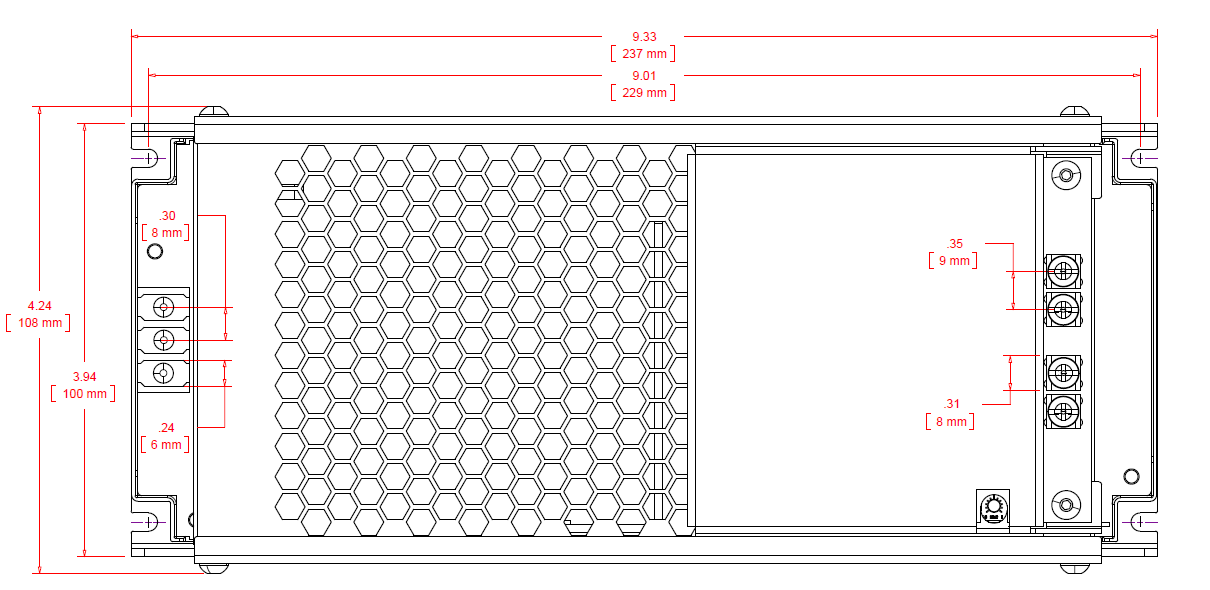

Figure 1: SR-19375 Mechanical Dimensions(Top)

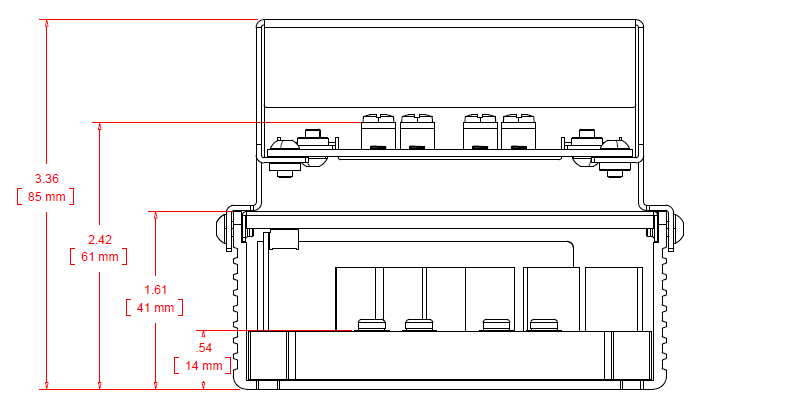

Figure 2: SR-19375 Mechanical Dimensions(Rear)

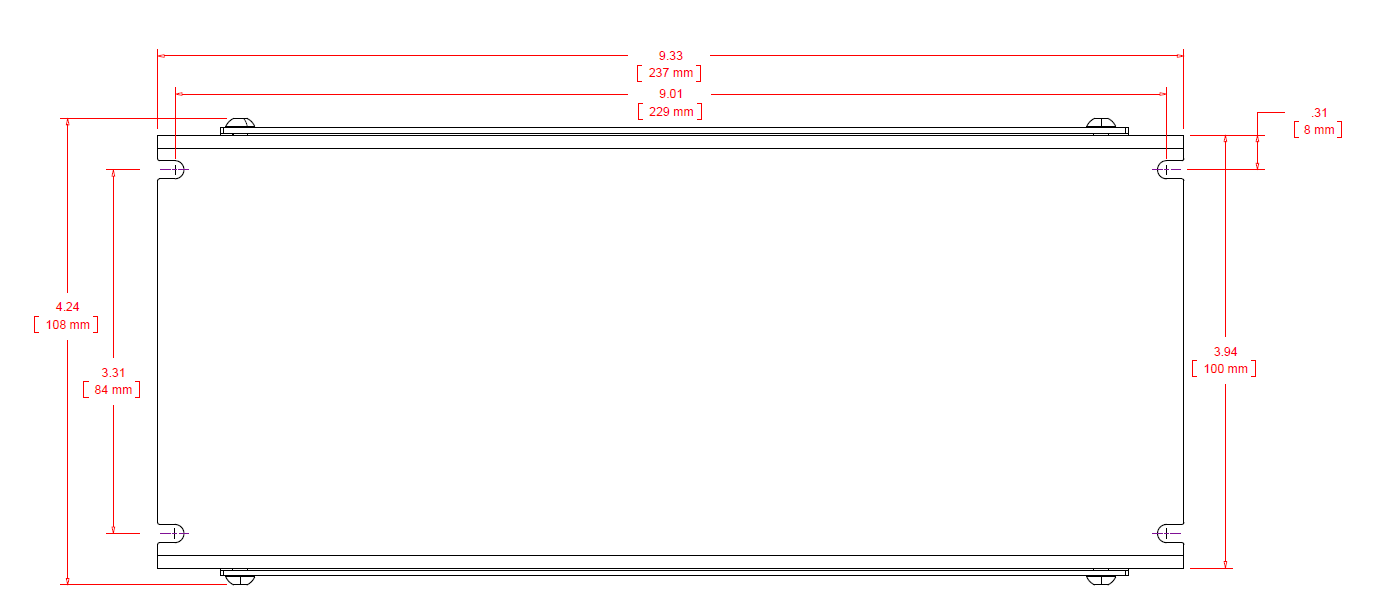

Figure 3: SR-19375 Mechanical Dimensions(Bottom)

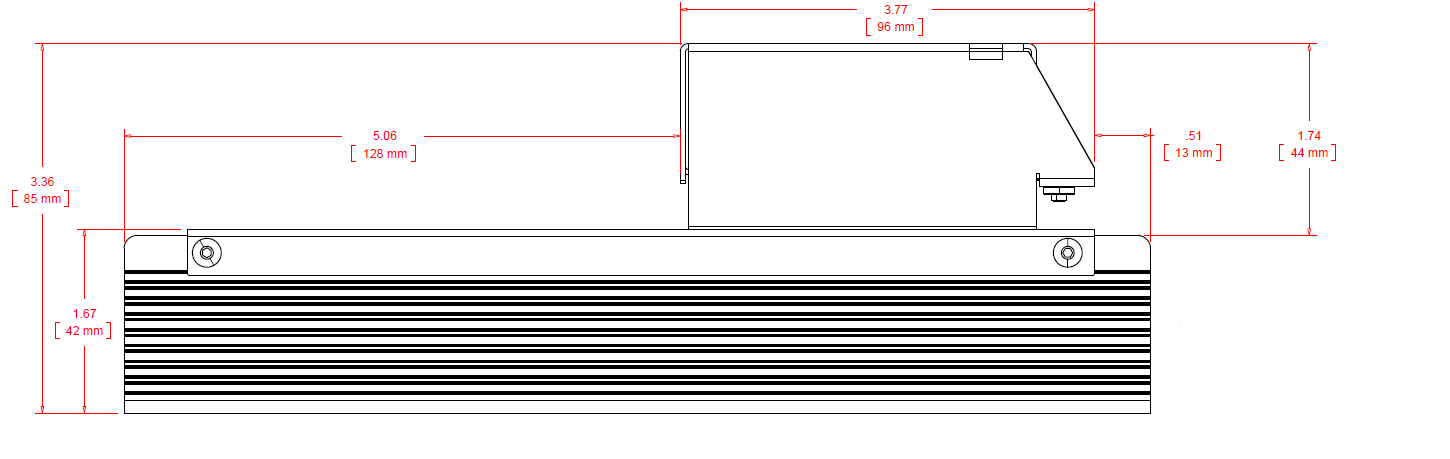

Figure 4: SR-19375 Mechanical Dimensions(Front)
