Motion Controller

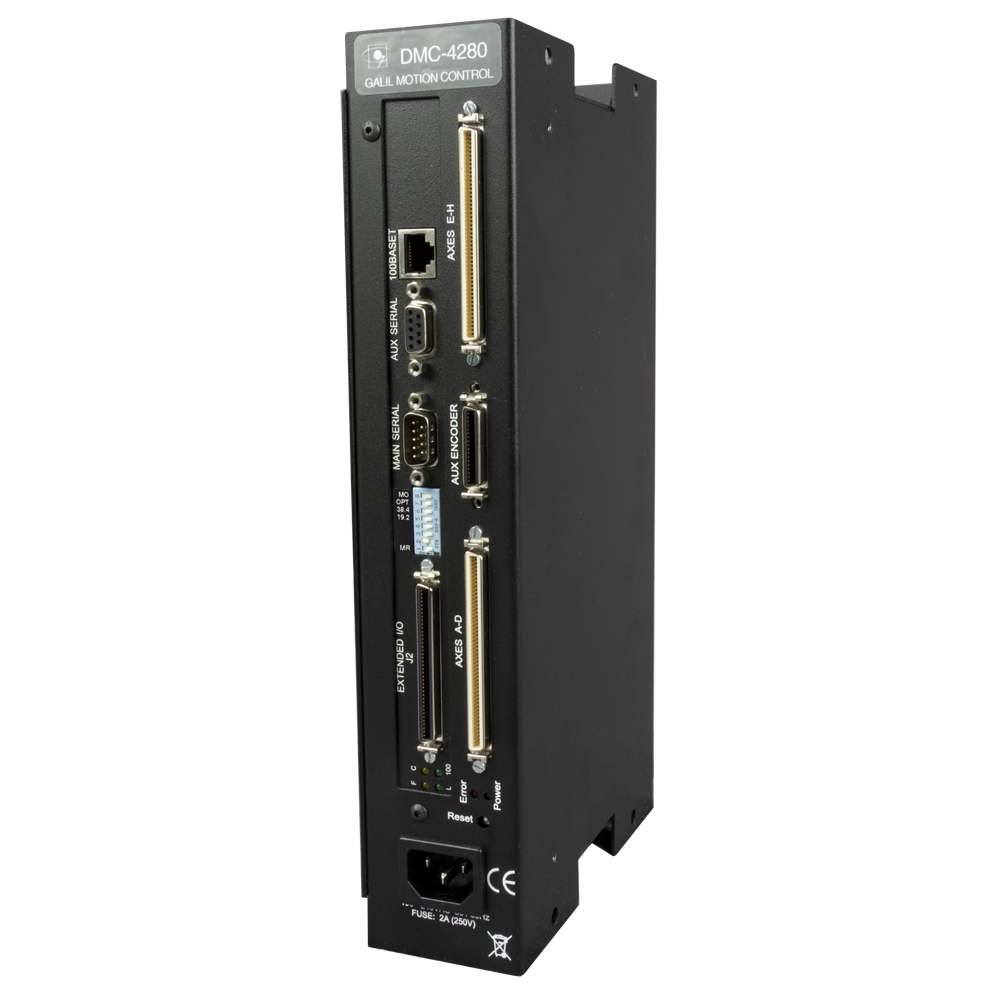

DMC-4200
Premium 8-axis motion controller and successor to the DMC-2000 series. Features AC power input for high-performance industrial applications.
Don't see exactly what you need? We offer full customization capabilities and can implement any requirements. Talk to our experts →
Supported Encoder Types
Specifications
Number of Axes
8
Power Supply
90-250VAC
Minimum Servo Update
- 1-2 axes: 62 μs
- 3-4 axes: 125 μs
- 5-6 axes: 156 μs
- 7-8 axes: 187 μs
Uncommited Digital Inputs
- 1-4 axis: 8x opto
- 5-8 axis: 16x opto
Uncommited Digital Outputs
- 1-4 axis: 8x opto 500mA sourcing
- 5-8 axis: 16x opto 500mA sourcing
Extended I/O
TTL 0-5V (32)
Analog Inputs
12-bit ±10V (8) with optional 16-bit
Command Processing Time
40 μs
Application Programming
- Memory: 4000 lines × 80 characters
- Array Elements: 24,000
- Variables: 510
- Threads: 8
Motors
BLM-N23-50-1000-B
Nema 23 Brushless Motor with 1000-line encoder
Power Supplies
PS-2.50-24
60 Watt Power Supply (2.5Amps at 24V)
PSR-12-24
12A-24 VDC Power supply
PSR-6-48
6A-48 VDC Power Supply
PSR-30-24
30A-24 VDC Power Supply
PSR-15-48
15A-48 VDC Power Supply
Cables

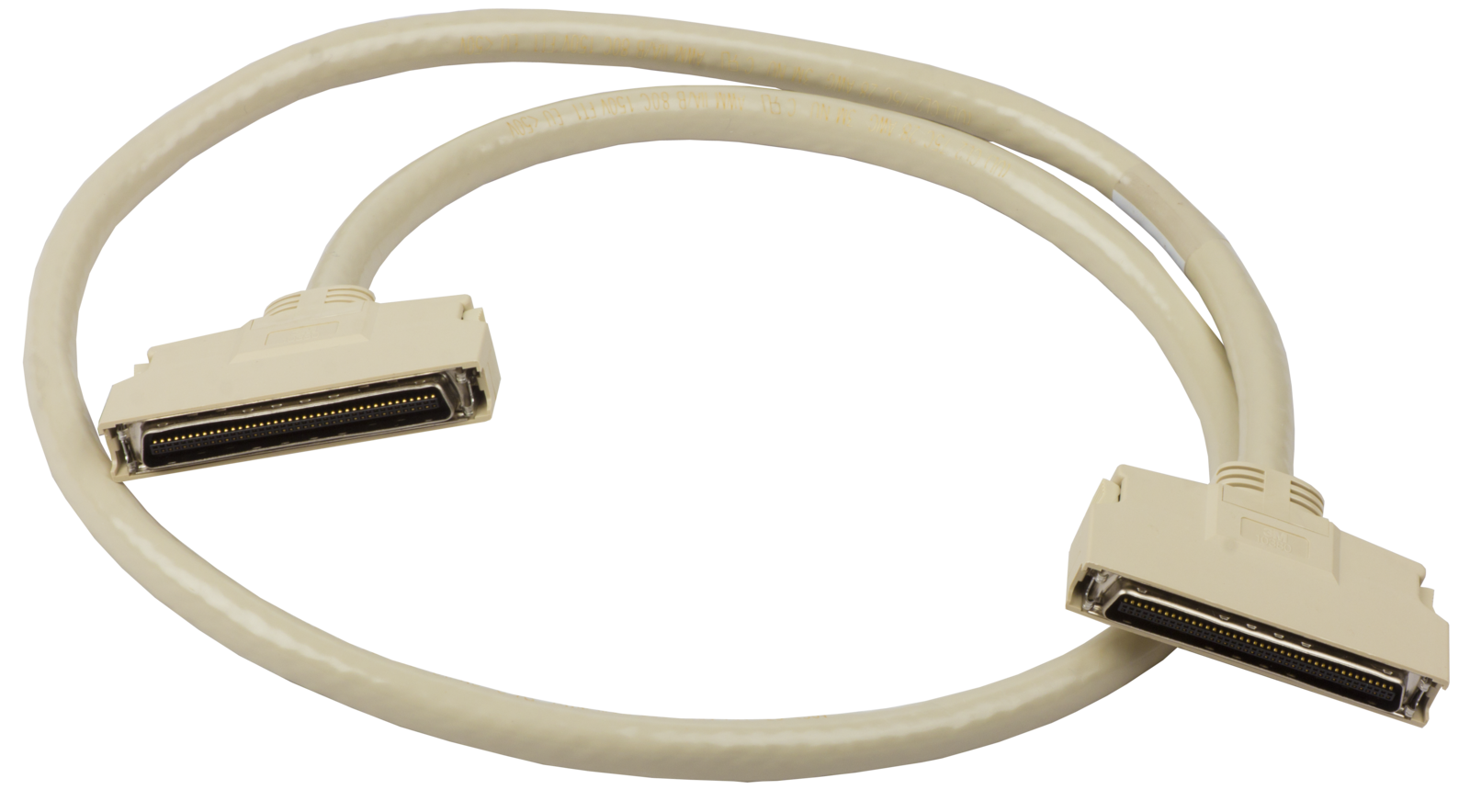

CABLE-80-1M
Extended I/O cable; 1 meter

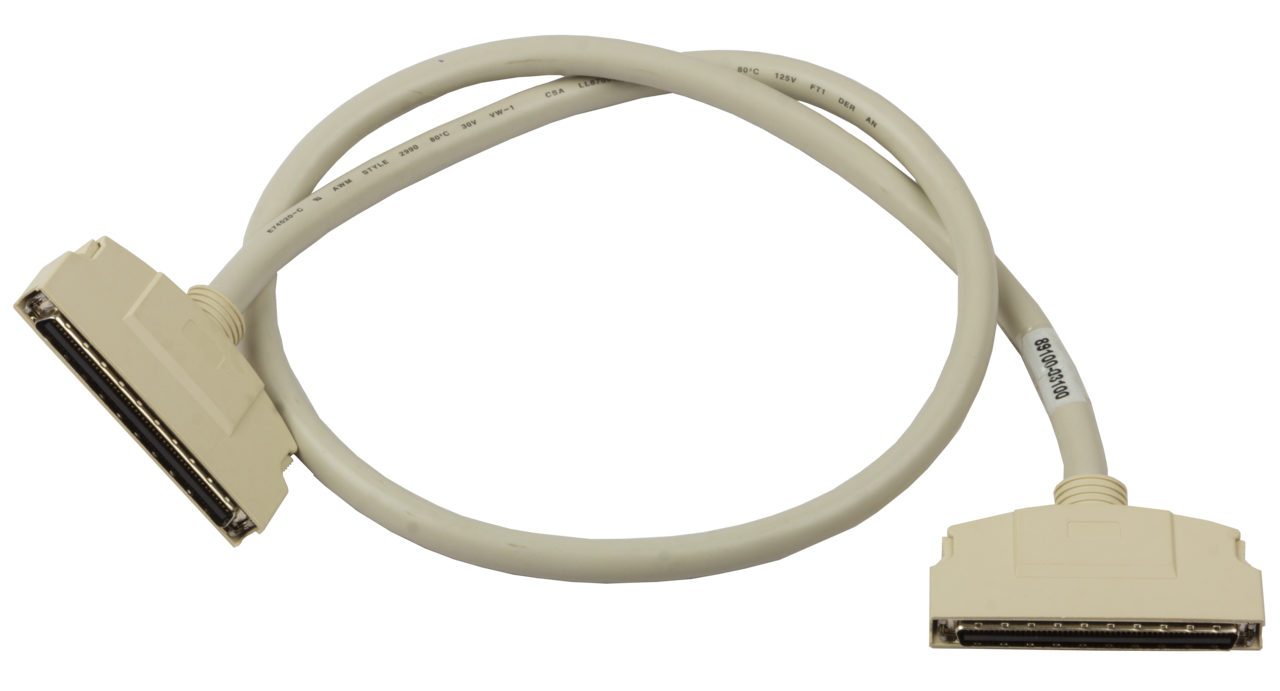

CABLE-100-1M
100-pin cable 1 meter
CABLE-100-2M
100-pin cable 2 meter
CABLE-100-4M
100-pin cable 4 meter
CABLE-9-PIN-D
RS232 female to female straight through cable

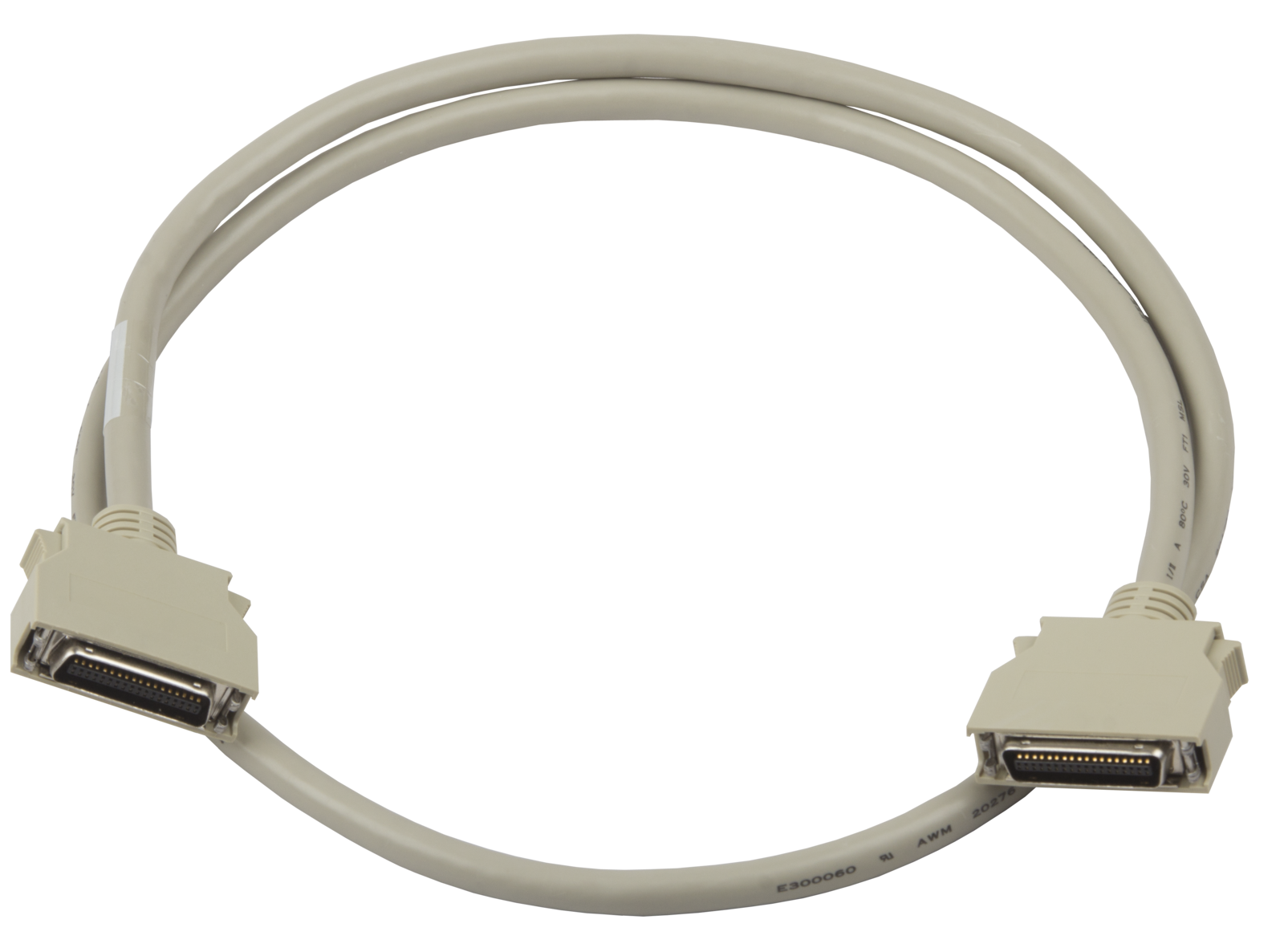

CABLE-36-1M
Auxiliary encoder cable; 1 meter
Interconnects

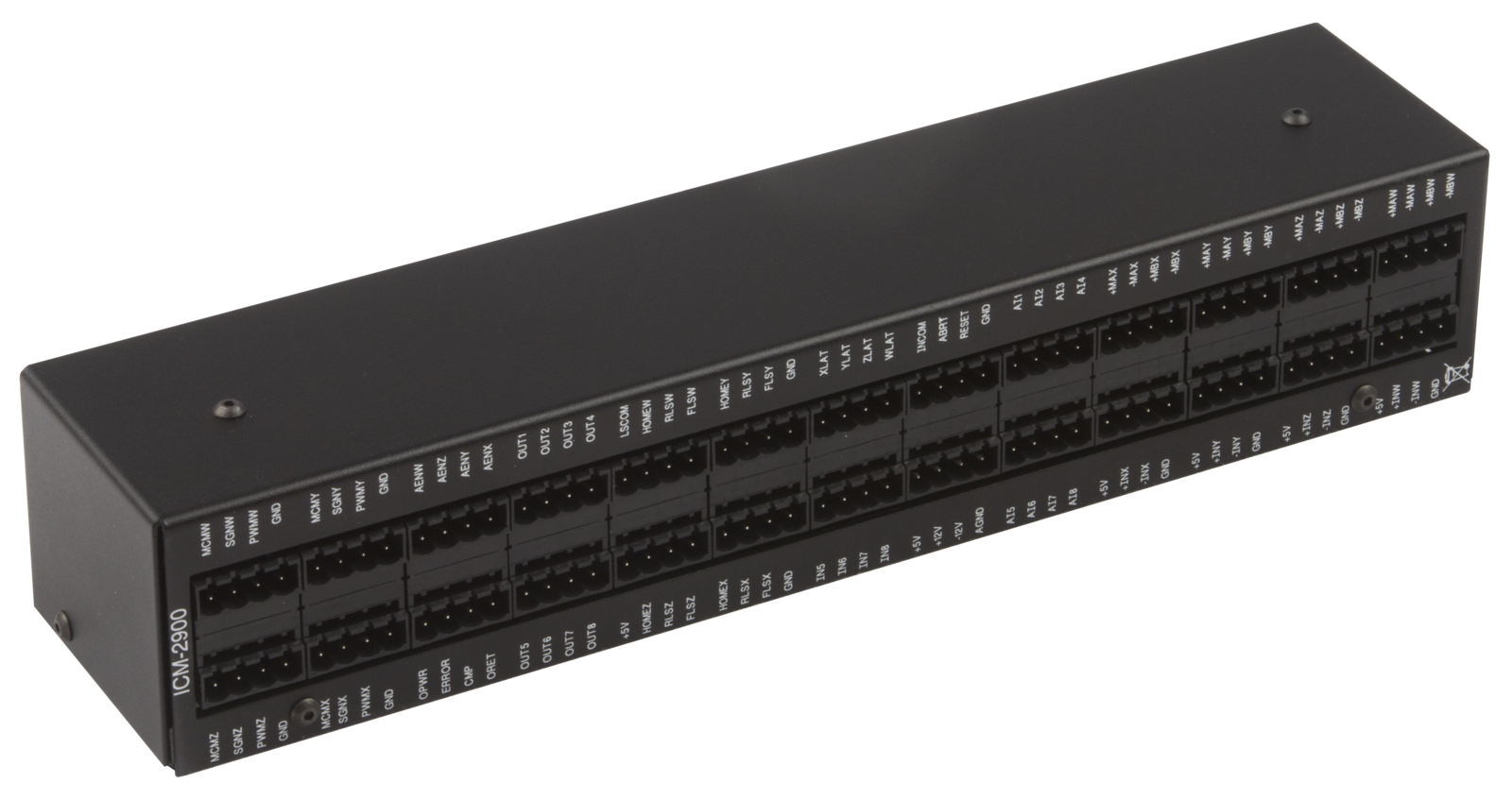

ICM-2900
Interconnect for 4 axis (Free optional flange mount)
ICM-2900-OPTO
ICM with opto outputs (Free optional flange mount)
Need Help Configuring Your System?
Our motion control experts can help you select the right configuration for your application.
