Motion Controller

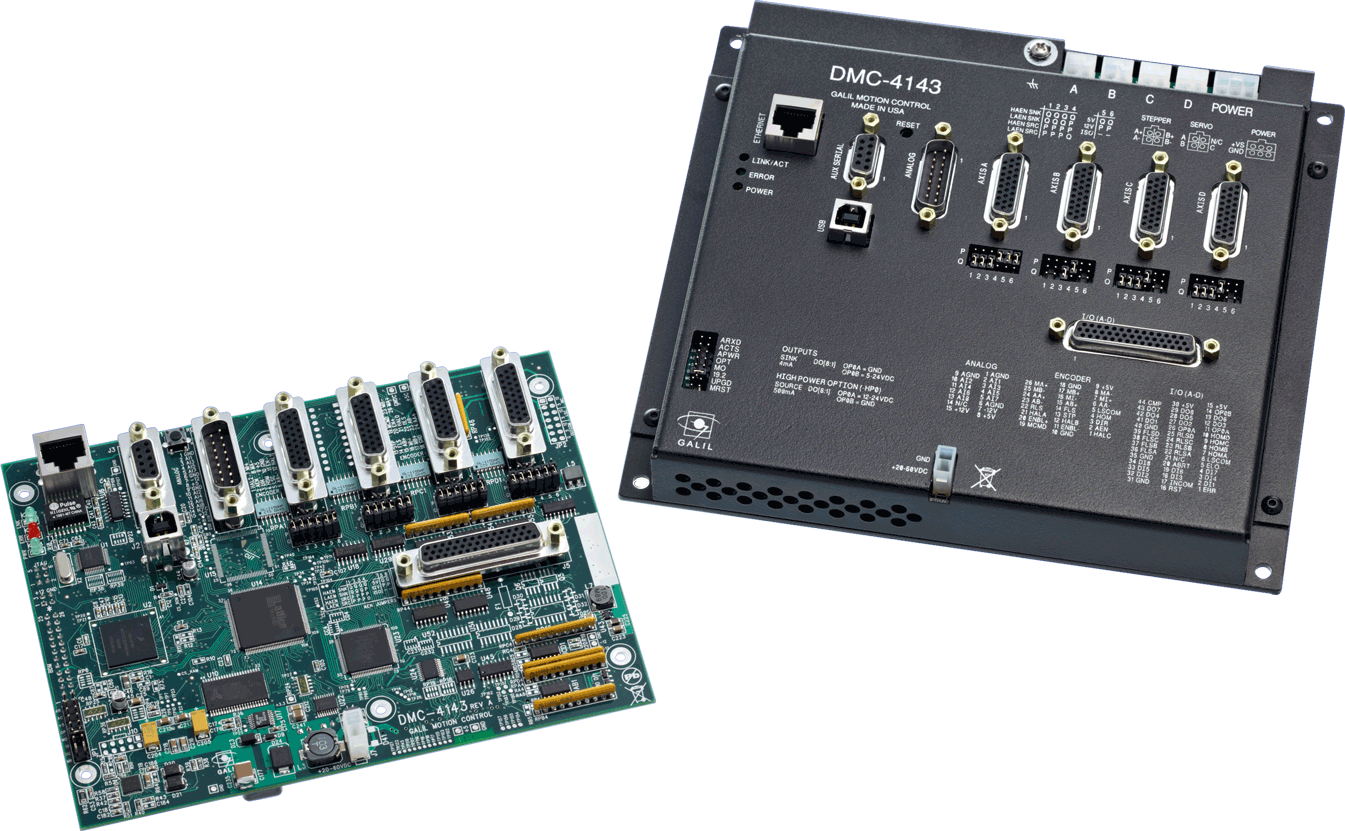

DMC-4103
Standard multi-axis motion controller supporting 1-8 axes with Ethernet connectivity. A cost-effective solution for demanding motion control applications.
Don't see exactly what you need? We offer full customization capabilities and can implement any requirements. Talk to our experts →
Internal Amplifiers
Supported Encoder Types
Specifications
Number of Axes
1-8
Power Supply
20-80VDC
Minimum Servo Update
- 1-2 axes: 125 μs
- 3-4 axes: 250 μs
- 5-6 axes: 375 μs
- 7-8 axes: 500 μs
Uncommited Digital Inputs
- 1-4 axis: 8x opto
- 5-8 axis: 16x opto
Uncommited Digital Outputs
- 1-4 axis: 8x opto 4mA sinking
- 5-8 axis: 16x opto 4mA sinking
Analog Inputs
12-bit (8), 16-bit optional
Command Processing Time
14 μs
Application Programming
- Memory: 4000 lines × 80 characters
- Array Elements: 24,000
- Variables: 510
- Threads: 8
Motors
BLM-N23-50-1000-B
Nema 23 Brushless Motor with 1000-line encoder
Power Supplies
PS-2.50-24
60 Watt Power Supply (2.5Amps at 24V)
PSR-12-24
12A-24 VDC Power supply
PSR-6-48
6A-48 VDC Power Supply
PSR-30-24
30A-24 VDC Power Supply
PSR-15-48
15A-48 VDC Power Supply
Cables
CABLE-26M-1M
26-pin HD male D to discrete wires-1 meter
CABLE-44M-1M
44-pin HD male D to discrete wires-1 meter
CABLE-44M-2M
44-pin HD male D to discrete wires-2 meter

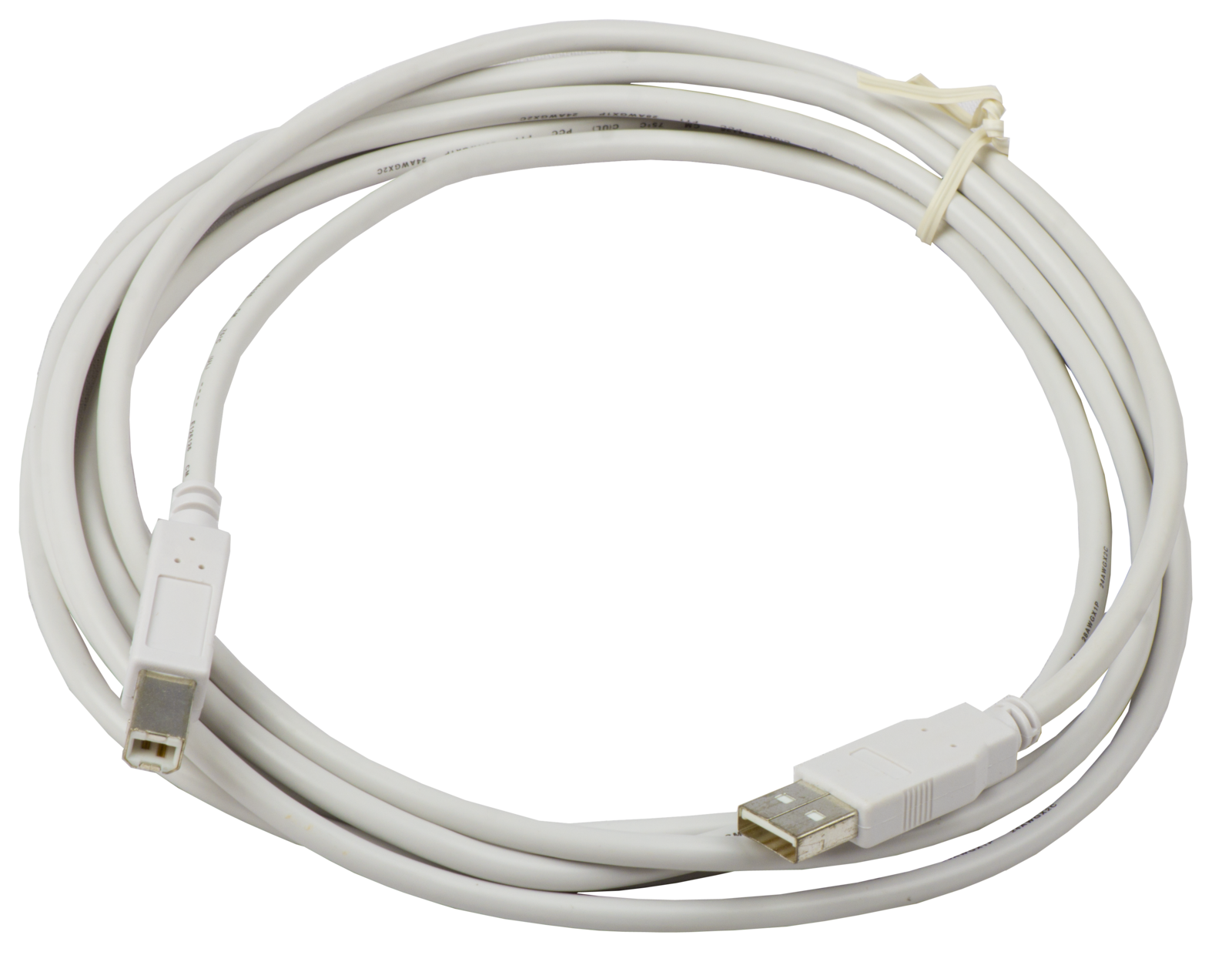

CABLE-USB-2M
USB Type A to Type B cable - 2 meter
CABLE-USB-3M
USB Type A to Type B cable - 3 meter
Interconnects
ICS-48026-M
26-pin D HD male to screw terminals
ICS-48044-M
44-pin D HD male to screw terminals
ICS-48115-F
15-pin D LD female to screw term
