Motion Controller

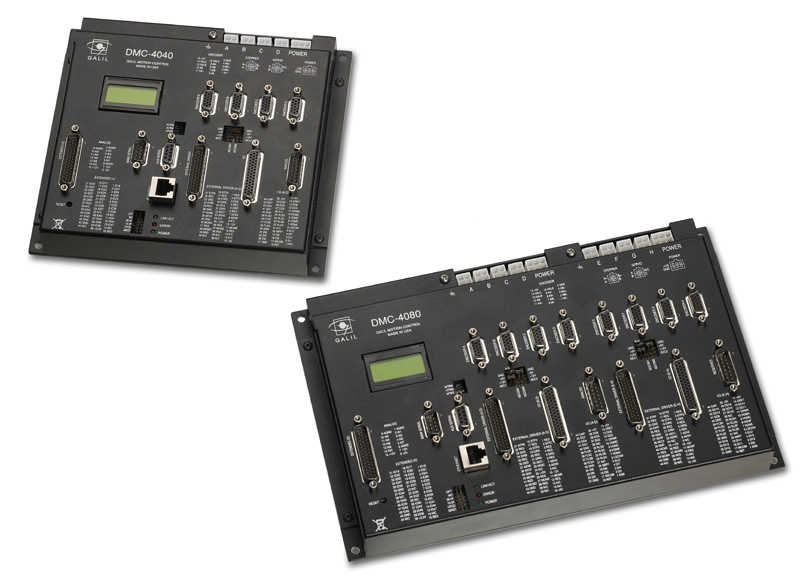

DMC-4000
Premium multi-axis motion controller with up to 8 axes and 11 μs command processing. The industry standard for demanding motion control applications.
Don't see exactly what you need? We offer full customization capabilities and can implement any requirements. Talk to our experts →
Internal Amplifiers
External Amplifiers
The DMC-4000 also supports the use of external amplifiers via the D-sub connector on the top face of the controller.
Supported Encoder Types
Specifications
Number of Axes
1-8
Power Supply
20-80VDC
Minimum Servo Update
- 1-2 axes: 62 μs
- 3-4 axes: 125 μs
- 5-6 axes: 156.25 μs
- 7-8 axes: 187.5 μs
Uncommitted Digital Inputs
- 1-4 axis: 8x opto
- 5-8 axis: 16x opto
Uncommitted Digital Outputs
- 1-4 axis: 8x opto 500mA sourcing
- 5-8 axis: 16x opto 500mA sourcing
Extended I/O
- TTL 0-3.3V (32) (5V optional)
- Available in banks of 8 for inputs and outputs
- Optional optoisolation with ICS-48032-F
Analog Inputs
- 12-bit ADC (8) (16 bit optional)
Application Programming
- Memory: 4000 lines × 80 characters
- Array Elements: 24,000
- Variables: 510
- Threads: 8
Motors
BLM-N23-50-1000-B
Nema 23 Brushless Motor with 1000-line encoder
Power Supplies
PS-2.50-24
60 Watt Power Supply (2.5Amps at 24V)
PSR-12-24
12A-24 VDC Power supply
PSR-6-48
6A-48 VDC Power Supply
PSR-30-24
30A-24 VDC Power Supply
PSR-15-48
15A-48 VDC Power Supply
Cables
CABLE-15-1M
15-pin HD male D to discrete wires-1 meter
CABLE-15-2M
15-pin HD male D to discrete wires-2 meter

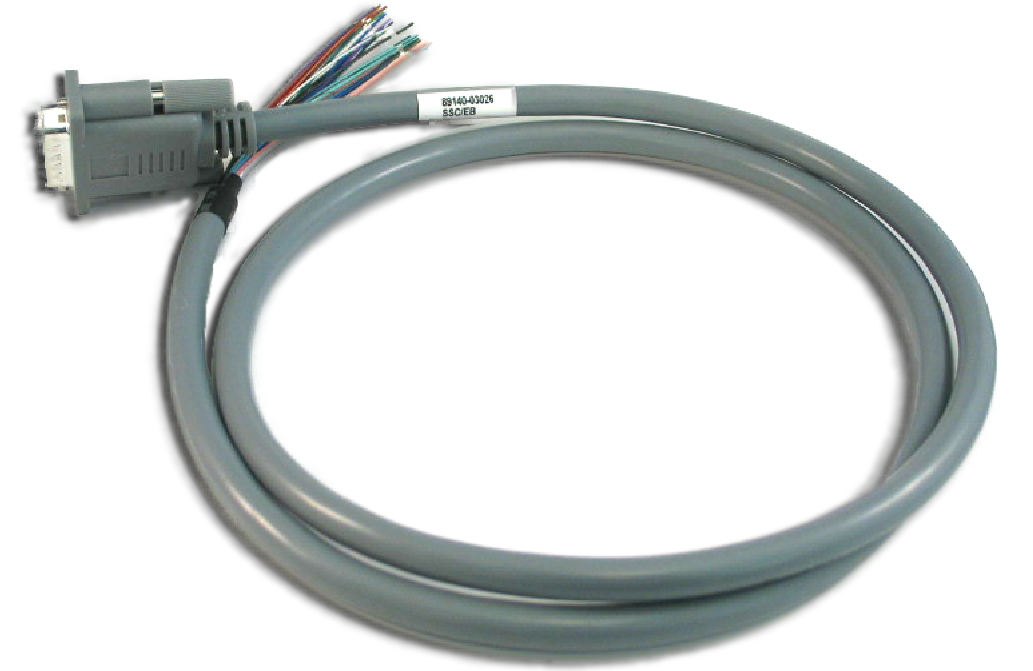

CABLE-26M-1M
26-pin HD male D to discrete wires-1 meter

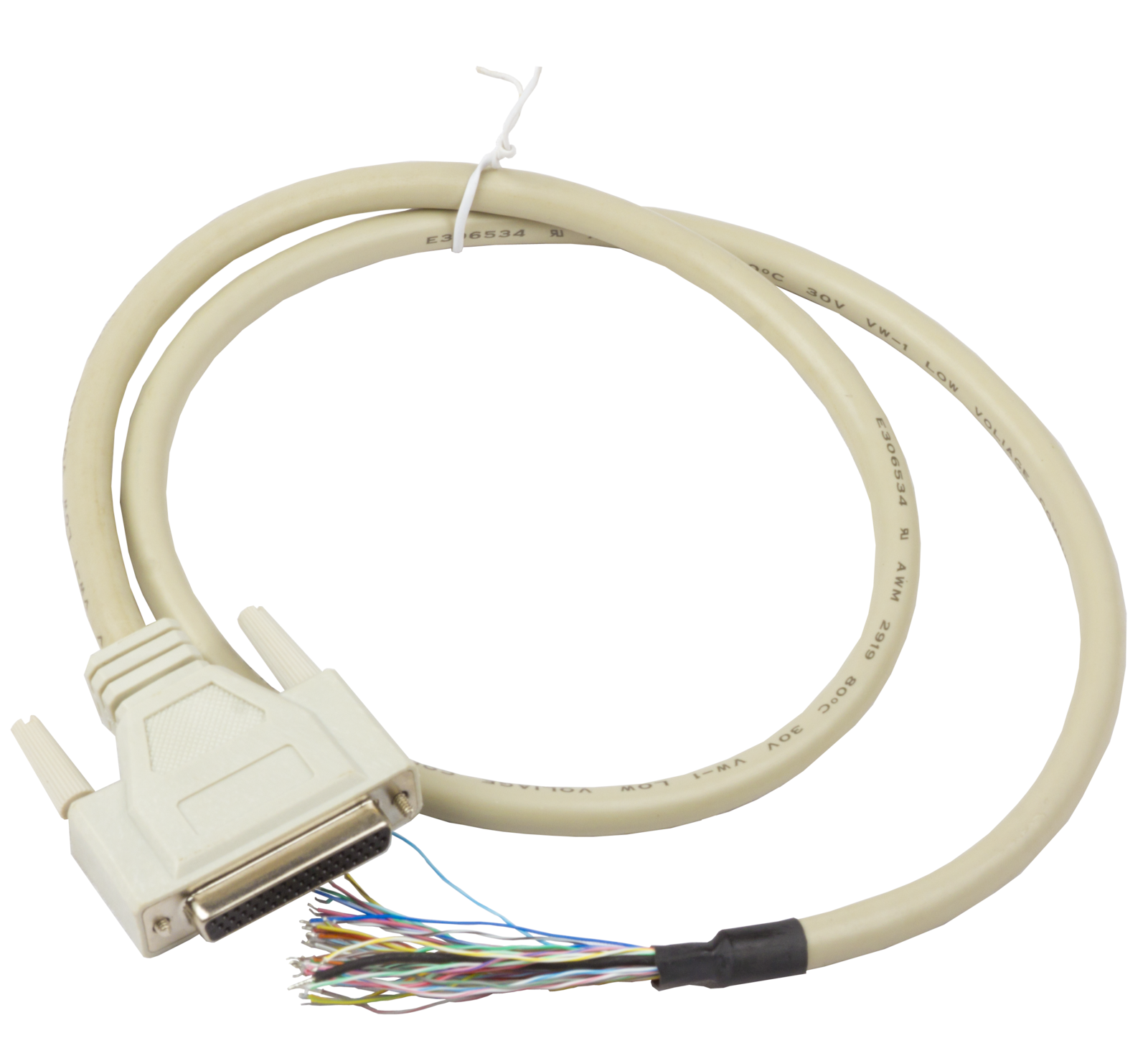

CABLE-44F-1M
44-pin HD female D to discrete wires-1 meter
CABLE-44M-1M
44-pin HD male D to discrete wires-1 meter
CABLE-44M-2M
44-pin HD male D to discrete wires-2 meter
CABLE-9-PIN-D
RS232 female to female straight through cable
Interconnects
ICS-48015-M
15-pin D HD male to screw term

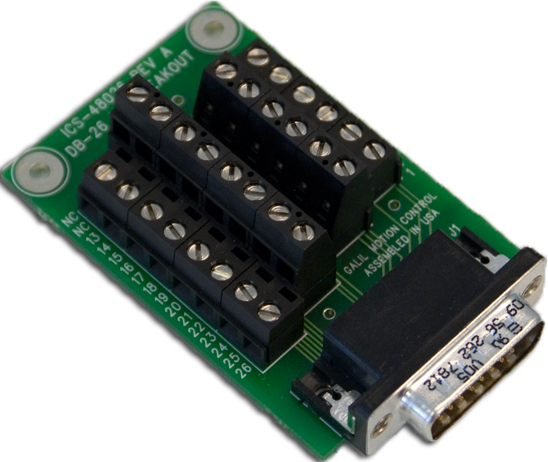

ICS-48026-M
26-pin D HD male to screw terminals

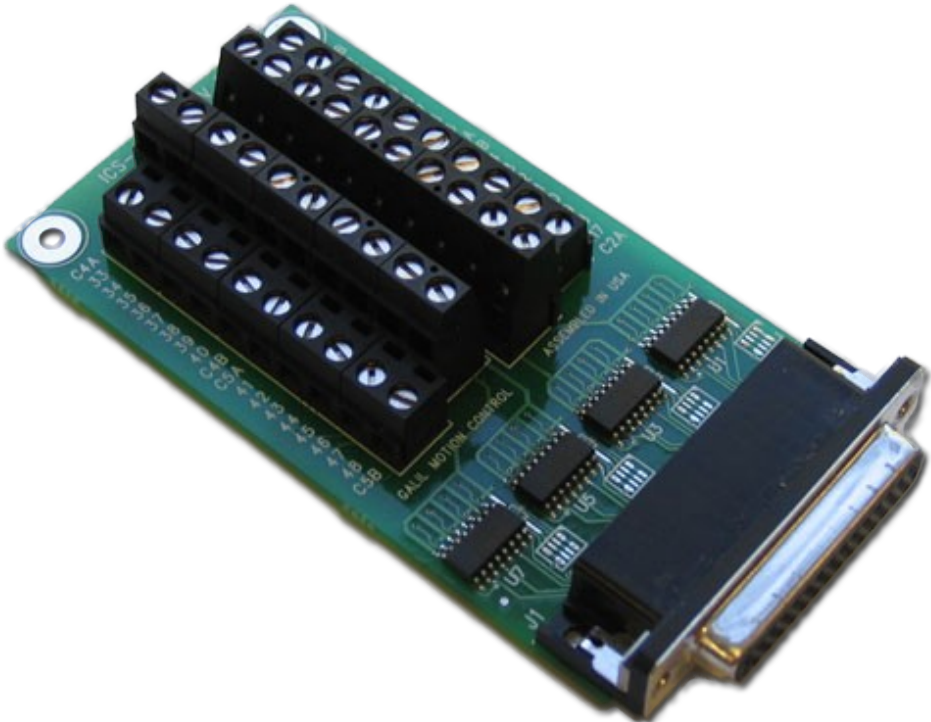

ICS-48032-F
44-pin D HD female to screw term with optoisolation

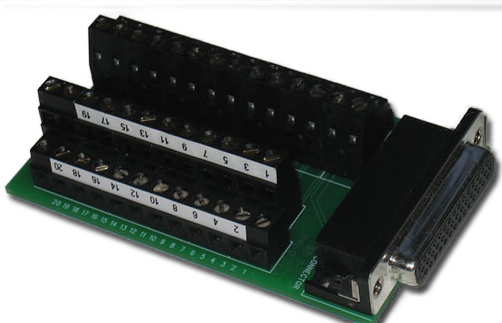

ICS-48044-F
44-pin D HD female to screw term
ICS-48044-M
44-pin D HD male to screw terminals

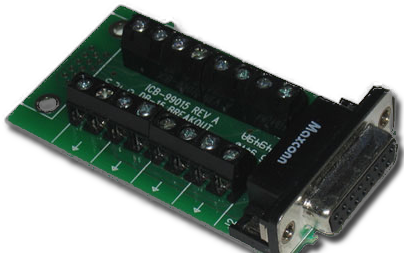

ICS-48115-F
15-pin D LD female to screw term
