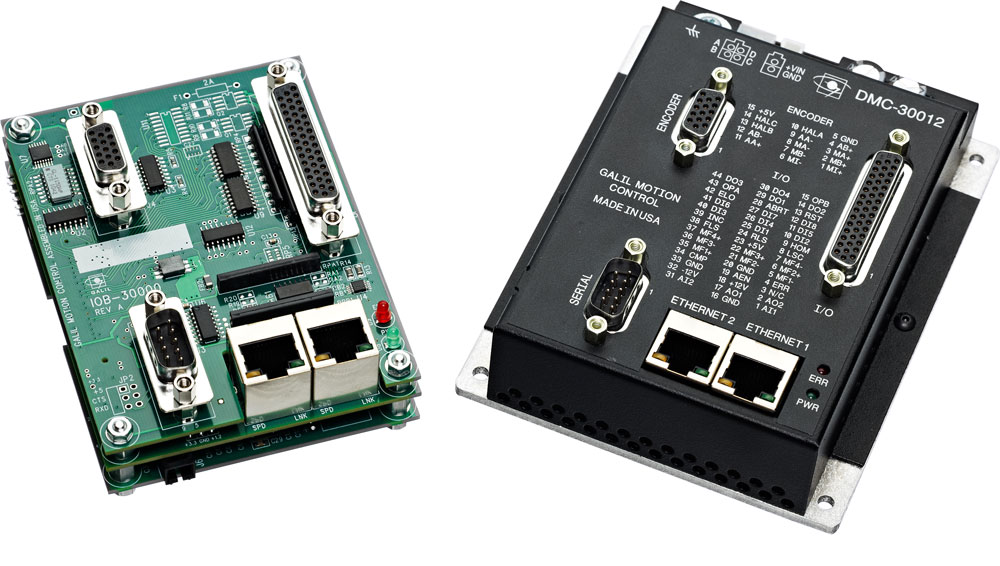

Motion Controller
DMC-30000
Single-axis motion controller with Ethernet and RS232 connectivity. Compact design for space-constrained applications.
Don't see exactly what you need? We offer full customization capabilities and can implement any requirements. Talk to our experts →
External Amplifier Power Options
Supported Encoder Types
Specifications
Number of Axes
1
Power Supply
Multiple options: +5V/±12V, 9-48V, 20-80V, 15-40V, 12-30V (model dependent)
Minimum Servo Update
125 μs
Digital Inputs
8x opto
Digital Outputs
4x opto 4mA sinking
Analog Inputs
12-bit 0-5V (2), optional ±10V and optional 16-bit ADC
Analog Outputs
16-bit ±10V (2)
Command Processing Time
60 μs
Application Programming
- Memory: 1000 lines × 80 characters
- Array Elements: 3,000
- Variables: 254
Motors

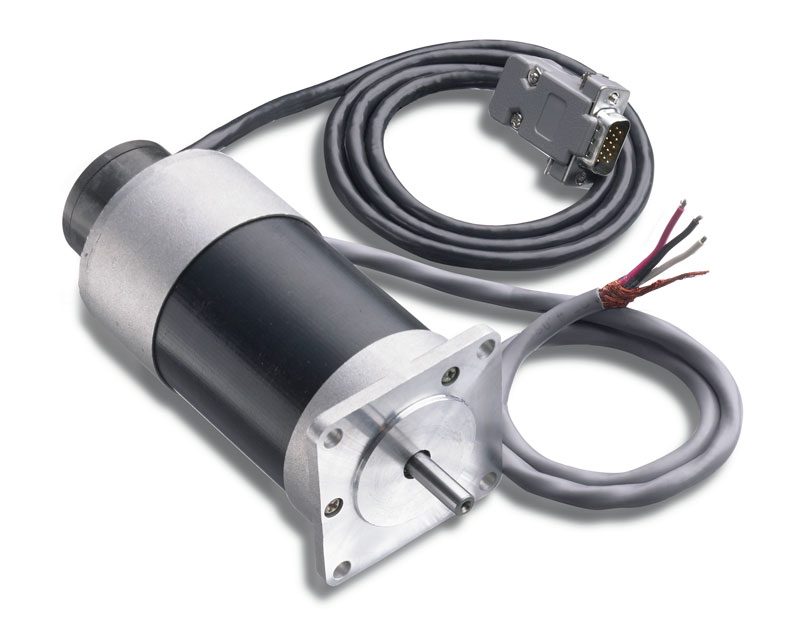

BLM-N23-50-1000-B
Nema 23 Brushless Motor with 1000-line encoder
Power Supplies

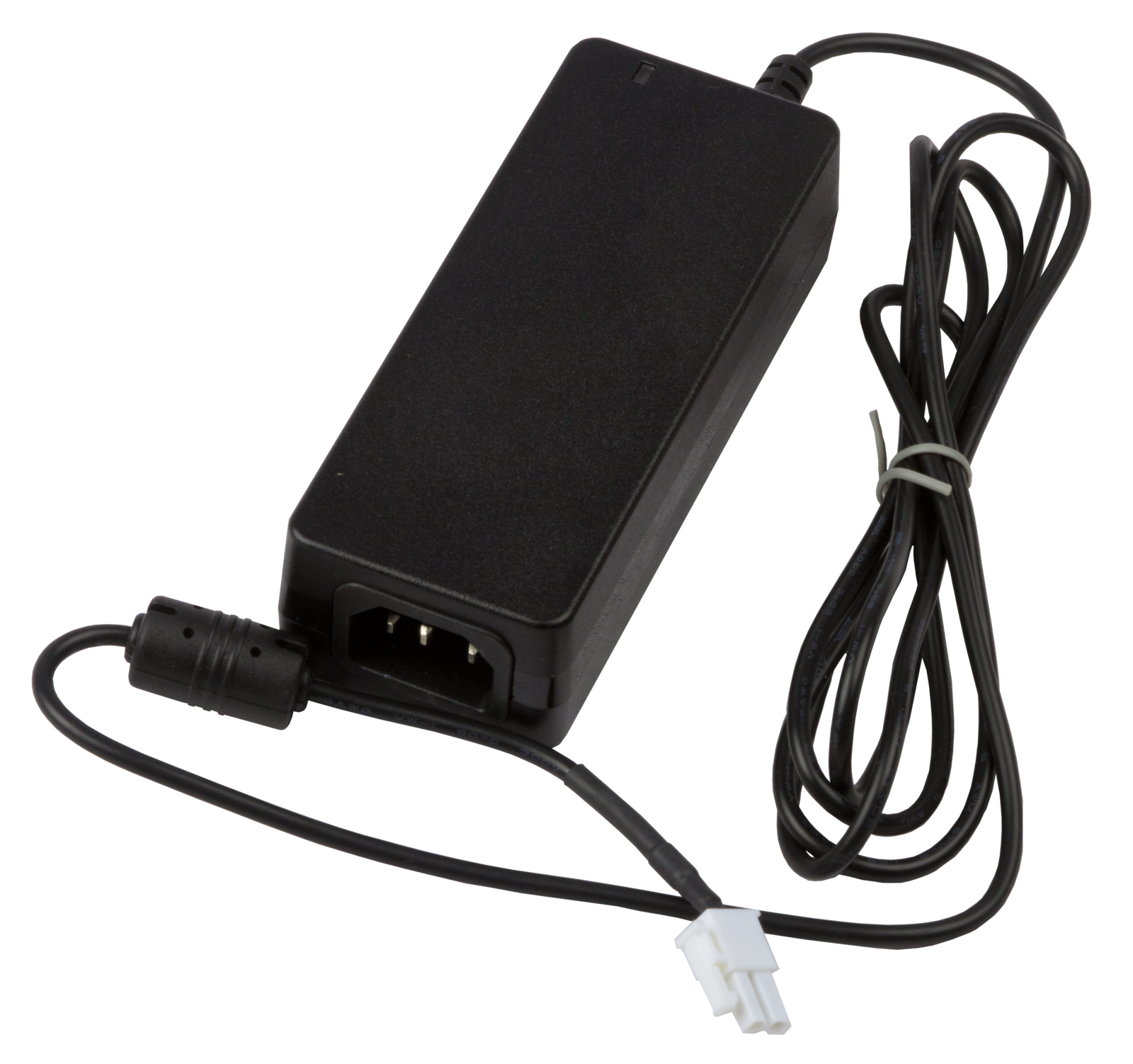

PS-2.50-24
60 Watt Power Supply (2.5Amps at 24V)

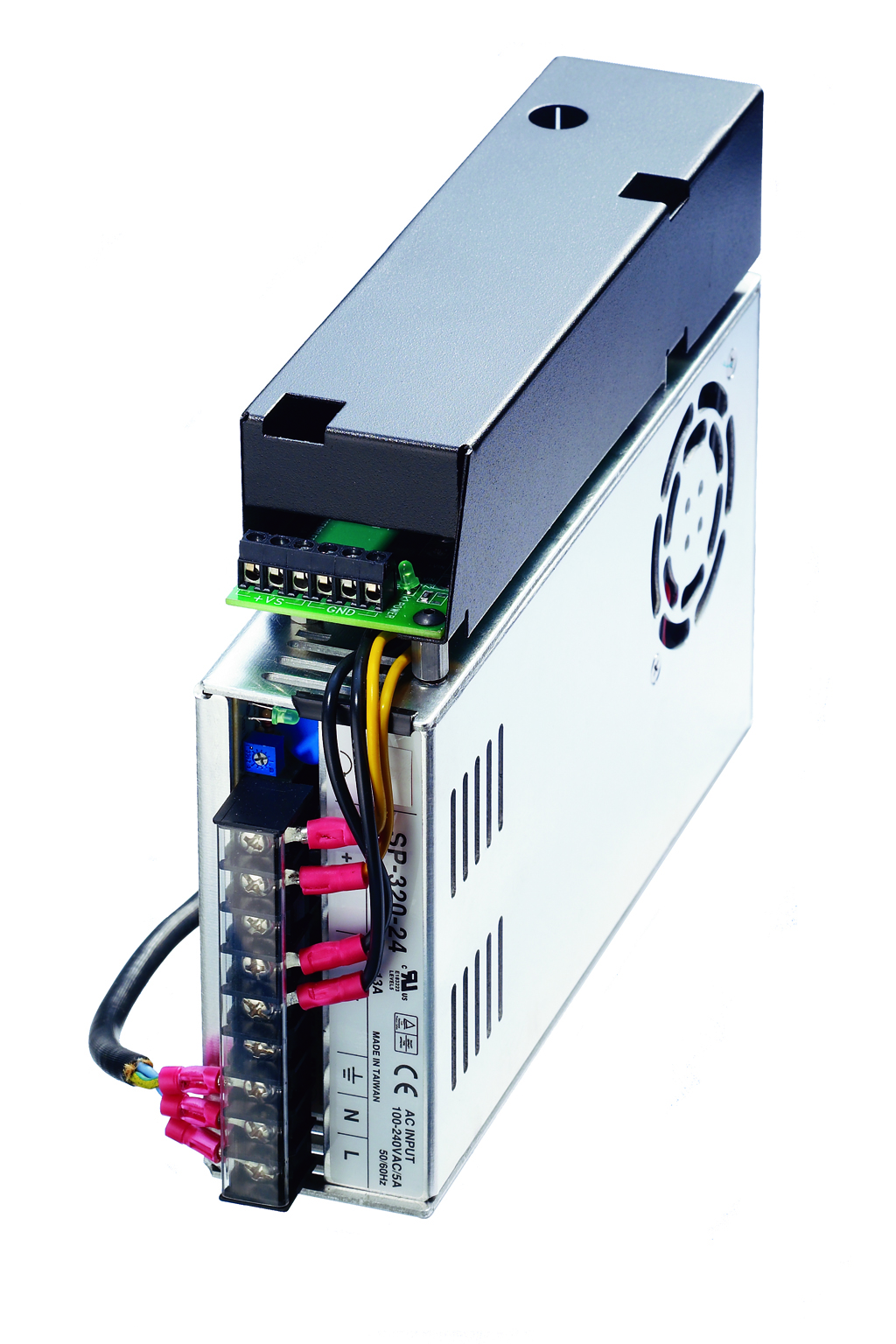

PSR-12-24
12A-24 VDC Power supply
PSR-6-48
6A-48 VDC Power Supply
PSR-30-24
30A-24 VDC Power Supply
PSR-15-48
15A-48 VDC Power Supply
Cables

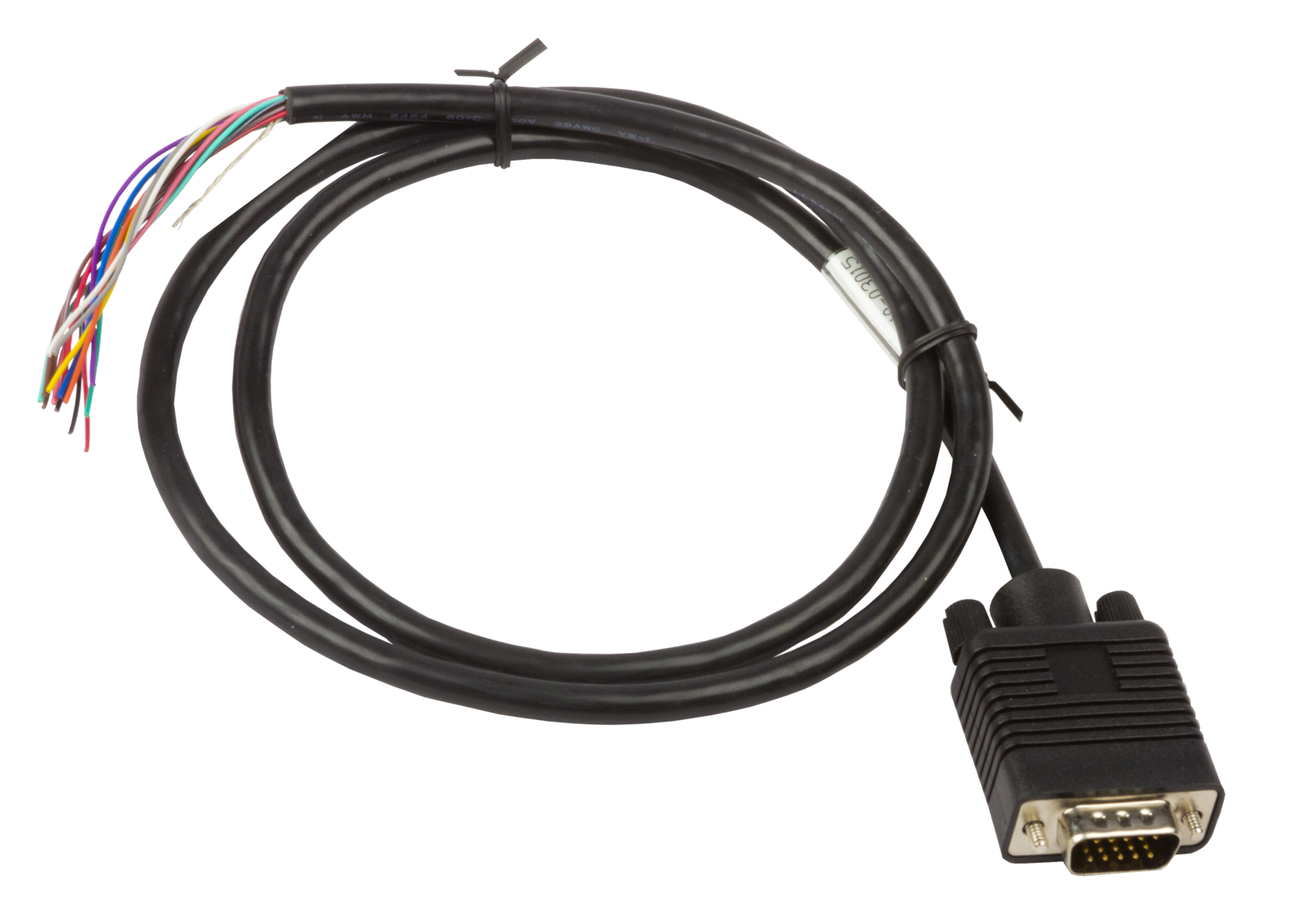

CABLE-15-1M
15-pin HD male D to discrete wires-1 meter
CABLE-15-2M
15-pin HD male D to discrete wires-2 meter

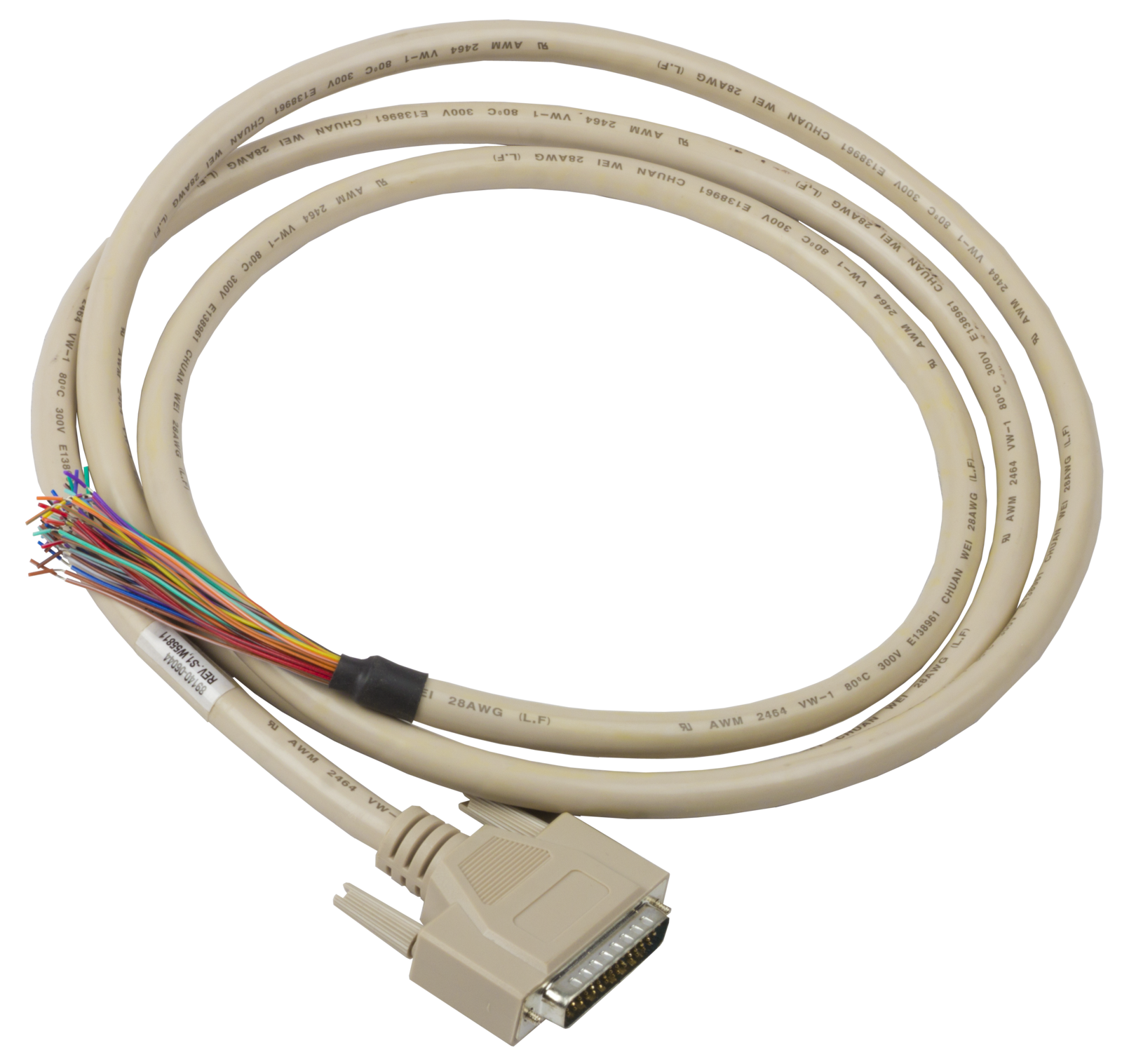

CABLE-44M-1M
44-pin HD male D to discrete wires-1 meter
CABLE-44M-2M
44-pin HD male D to discrete wires-2 meter

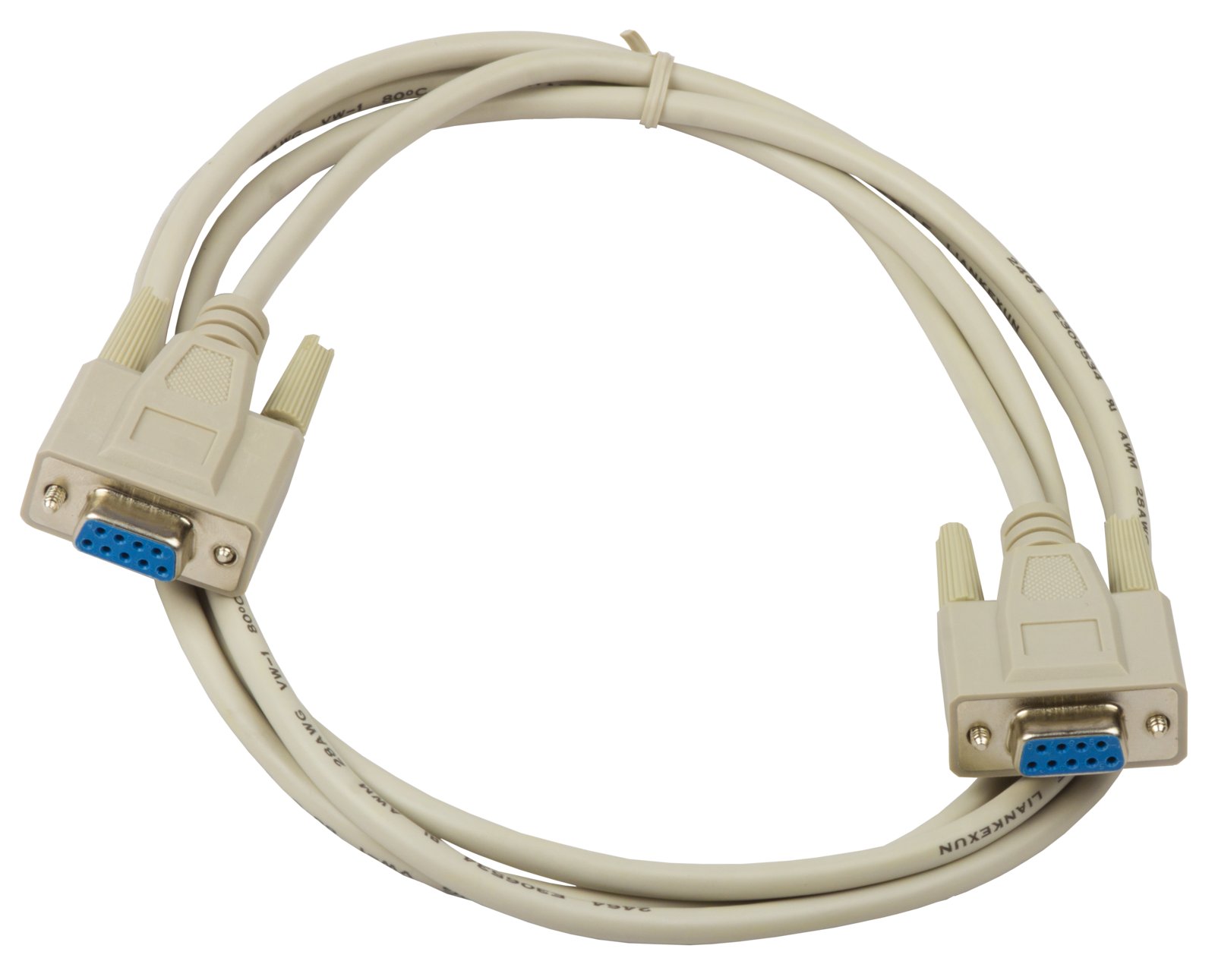

CABLE-9-PIN-D
RS232 female to female straight through cable
Interconnects

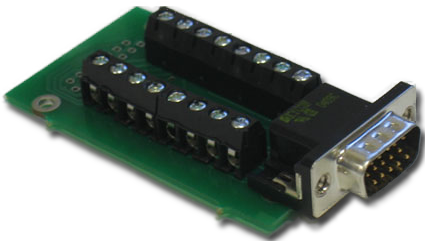

ICS-48015-M
15-pin D HD male to screw term

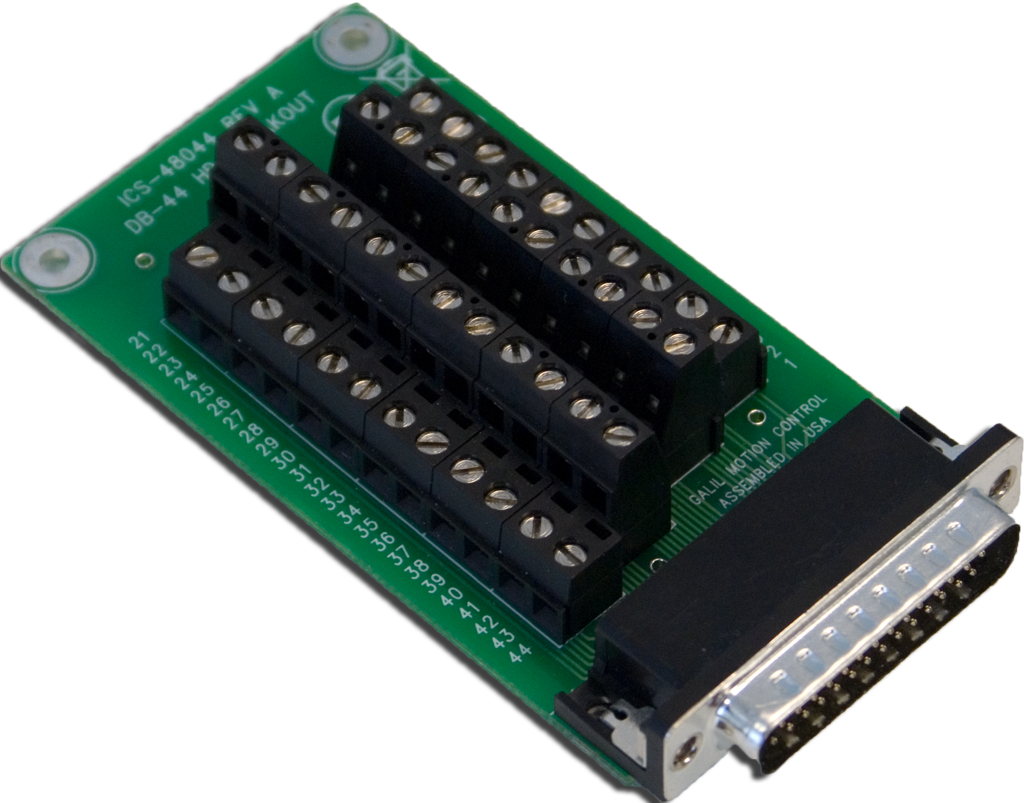

ICS-48044-M
44-pin D HD male to screw terminals
