Motion Controller
DMC-2105

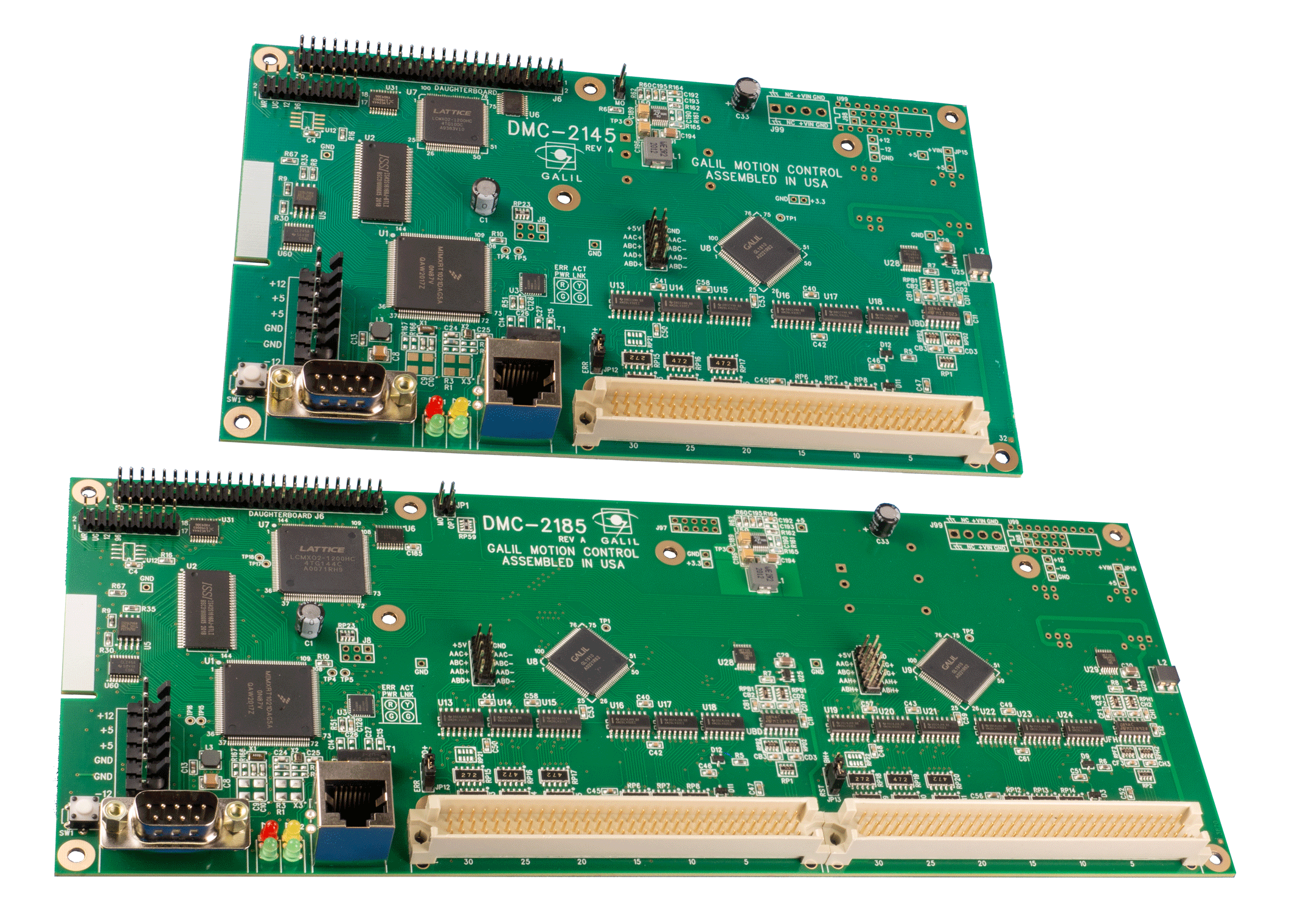

Modern successor to the DMC-2103, supporting 1-8 axes with Ethernet and RS232 connectivity. An ideal upgrade path for existing applications.
Don't see exactly what you need? We offer full customization capabilities and can implement any requirements. Talk to our experts →
Internal Amplifiers
External Amplifiers
The DMC-2105 supports the use of external amplifiers via the 96-pin connector. The ICM-20100 and ICM-20105 interconnect modules provide D-Sub breakout connections for simplified wiring.
Supported Encoder Types
Specifications
Number of Axes
1-8 axes
Processor
32-bit ARM
Power Supply
+5V, ±12V DC (9-48V with optional DC-to-DC converter)
Ethernet
100Base-T (TCP/IP and UDP)
RS232
19.2 kb
Max Encoder Frequency
15 MHz (servos)
Stepper Output
Up to 3 MHz
Digital I/O
- 1-4 axes: 8 TTL inputs, 8 TTL outputs
- 5-8 axes: 16 inputs, 16 outputs
Optically Isolated I/O
Optional via ICM-20105
Application Programming
- Memory: 4000 lines × 80 characters
- Array Elements: 24,000
- Threads: 8
Dimensions
- 1-4 axes: 4.25" x 7.0"
- 5-8 axes: 4.25" x 10.75"
Mounting
DIN-rail available
Power Supplies
PSR-12-24
12A-24 VDC Power supply
PSR-6-48
6A-48 VDC Power Supply
PSR-30-24
30A-24 VDC Power Supply
PSR-15-48
15A-48 VDC Power Supply
Cables
CABLE-15-1M
15-pin HD male D to discrete wires-1 meter
CABLE-15-2M
15-pin HD male D to discrete wires-2 meter
CABLE-44M-1M
44-pin HD male D to discrete wires-1 meter
CABLE-44M-2M
44-pin HD male D to discrete wires-2 meter
CABLE-9-PIN-D
RS232 female to female straight through cable
Interconnects
ICS-48044-M
44-pin D HD male to screw terminals
ICS-48115-F
15-pin D LD female to screw term
