PCI Motion Controller
DMC-1806

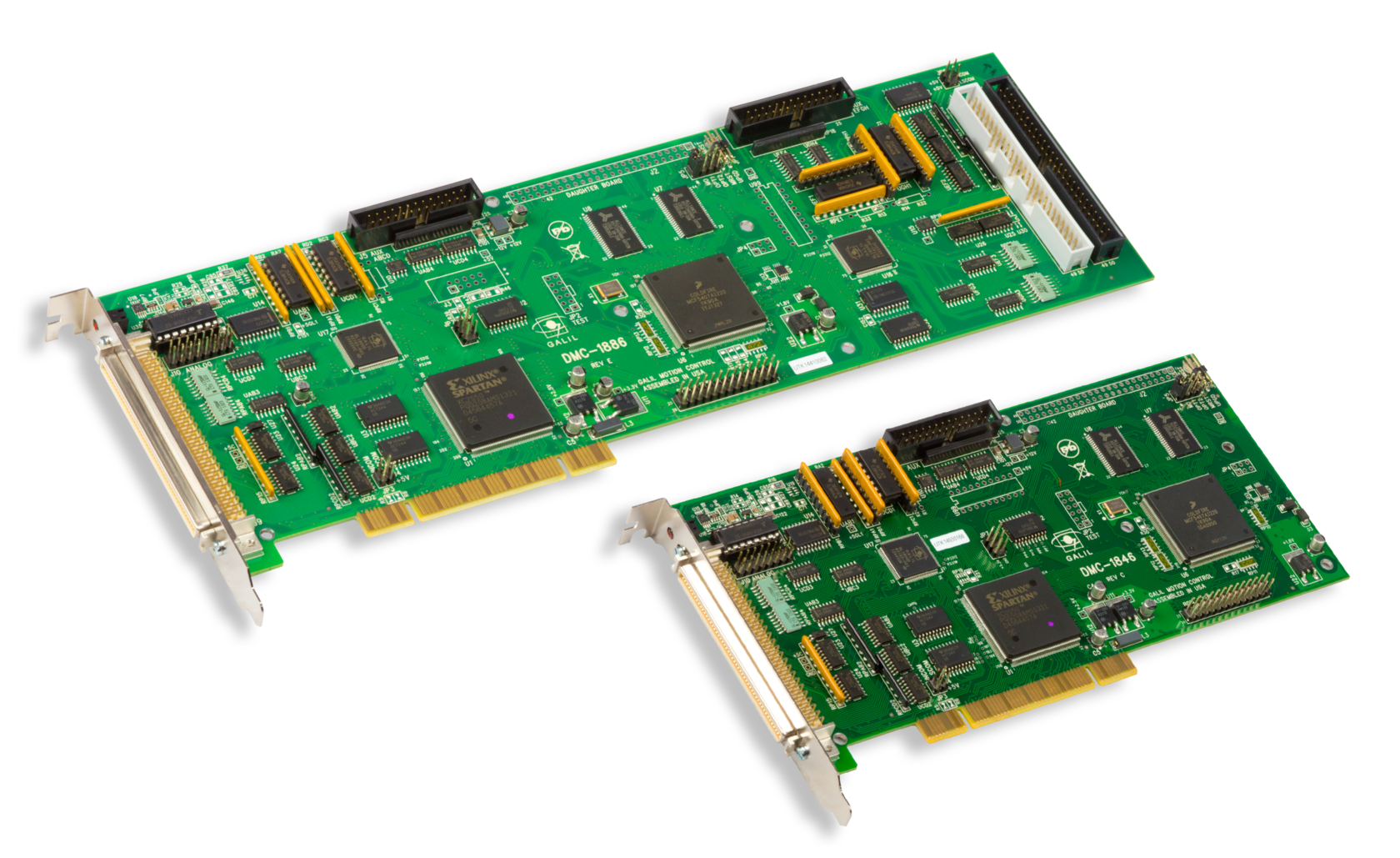

PCI bus motion controller for 1-8 axes with dual encoders per axis and expandable I/O.
Don't see exactly what you need? We offer full customization capabilities and can implement any requirements. Talk to our experts →
Specifications
Number of Axes
1-8
Form Factor
PCI Card
Minimum Servo Update
31 μs per axis
Command Processing Time
40 μs
Digital I/O
- 1-4 axes: 8 isolated inputs, 8 outputs
- 5-8 axes: 24 inputs, 16 outputs
Dimensions
- 1-4 axes: 7.85" x 4.2"
- 5-8 axes: 12.28" x 4.2"
Analog Inputs
8 uncommitted analog inputs via 100 pin SCSI
Application Programming
- 4000 lines × 80 characters program memory
- 510 variables
- 24000 array elements in up to 30 arrays
Supported Encoders
Quadrature
Price List
| Part Number | Description | 1 pc | 100 pc |
|---|---|---|---|
| 16BIT | 16-bit analog inputs | $110 | $70 |
| DB-28040 | Extended I/O daughter board | $320 | $210 |
| DMC-1816 | 1-axis PCI motion controller | $1,250 | $910 |
| DMC-1826 | 2-axis PCI motion controller | $1,695 | $995 |
| DMC-1836 | 3-axis PCI motion controller | $2,145 | $1,065 |
| DMC-1846 | 4-axis PCI motion controller | $2,480 | $1,130 |
| DMC-1856 | 5-axis PCI motion controller | $2,950 | $1,535 |
| DMC-1866 | 6-axis PCI motion controller | $3,170 | $1,620 |
| DMC-1876 | 7-axis PCI motion controller | $3,385 | $1,735 |
| DMC-1886 | 8-axis PCI motion controller | $3,575 | $1,815 |
Cables
CABLE-100-1M
100-pin cable 1 meter
CABLE-100-2M
100-pin cable 2 meter
CABLE-100-4M
100-pin cable 4 meter
CB-50-80
50-pin to 80-pin (for DB-14064)
CB-50-100
50-pin to 100-pin (Required for 5-8 axes)
Interconnects
ICM-2900
Interconnect for 4 axis (Free optional flange mount)
ICM-2900-OPTO
ICM with opto outputs (Free optional flange mount)
