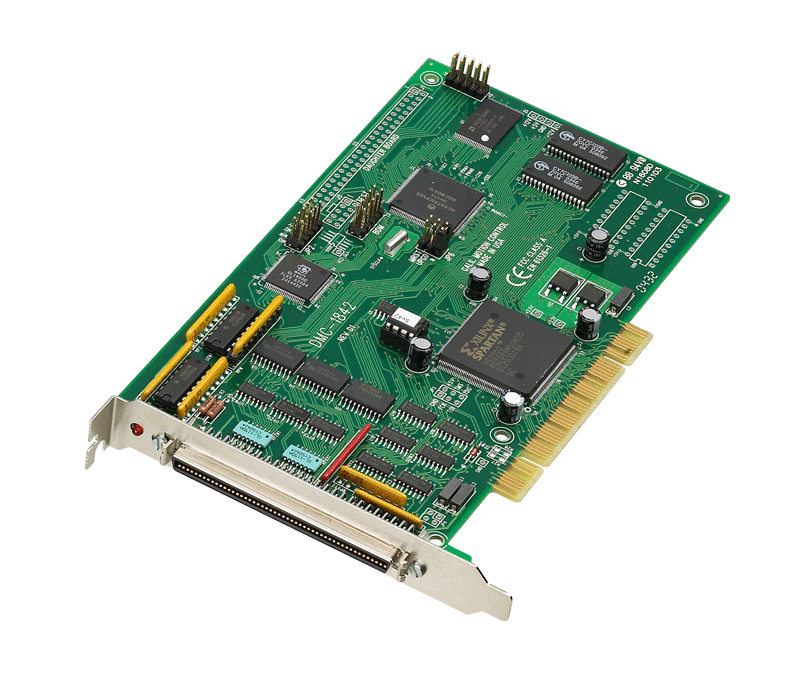

PCI Motion Controller
DMC-1802
PCI bus motion controller for 1-4 axes with expandable I/O.
Don't see exactly what you need? We offer full customization capabilities and can implement any requirements. Talk to our experts →
Specifications
Number of Axes
1-4
Form Factor
PCI Card
Minimum Servo Update
62.5 μs per axis
Digital I/O
8 uncommitted inputs and 8 outputs
Dimensions
7.275" x 4.2"
Application Programming
- 1000 lines × 80 characters program memory
- 254 variables
- 8000 array elements in up to 30 arrays
Supported Encoders
Quadrature
RoHS Compliant
Price List
| Part Number | Description | 1 pc | 100 pc |
|---|---|---|---|
| DMC-1812 | 1-axis PCI motion controller | $940 | $700 |
| DMC-1822 | 2-axis PCI motion controller | $1,040 | $780 |
| DMC-1832 | 3-axis PCI motion controller | $1,215 | $850 |
| DMC-1842 | 4-axis PCI motion controller | $1,380 | $925 |
Cables
CABLE-100-1M
100-pin cable 1 meter
$230 / $177 at 100+
CABLE-100-2M
100-pin cable 2 meter
$250 / $190 at 100+
CABLE-100-4M
100-pin cable 4 meter
$275 / $210 at 100+

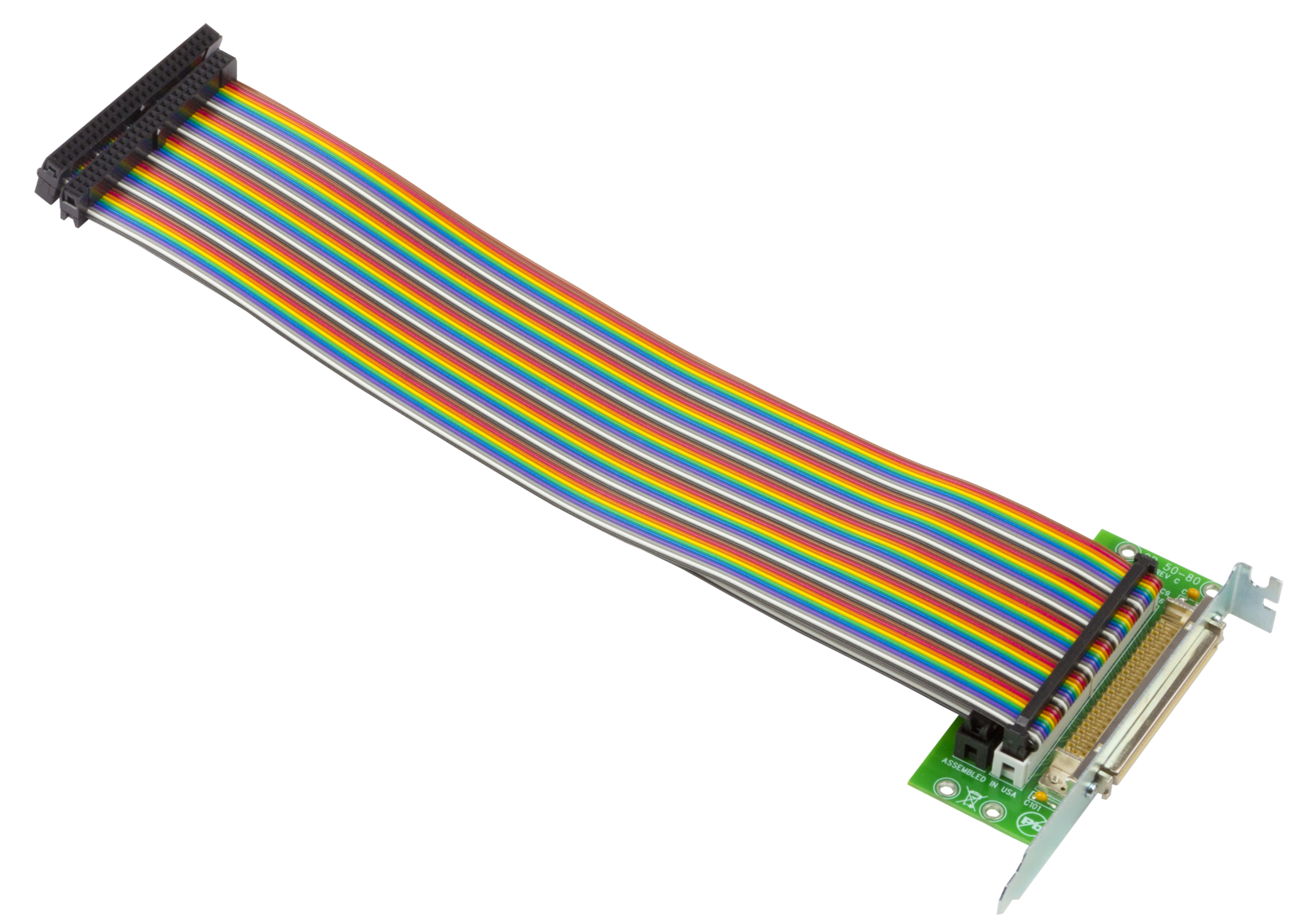

CB-50-80
50-pin to 80-pin (for DB-14064)

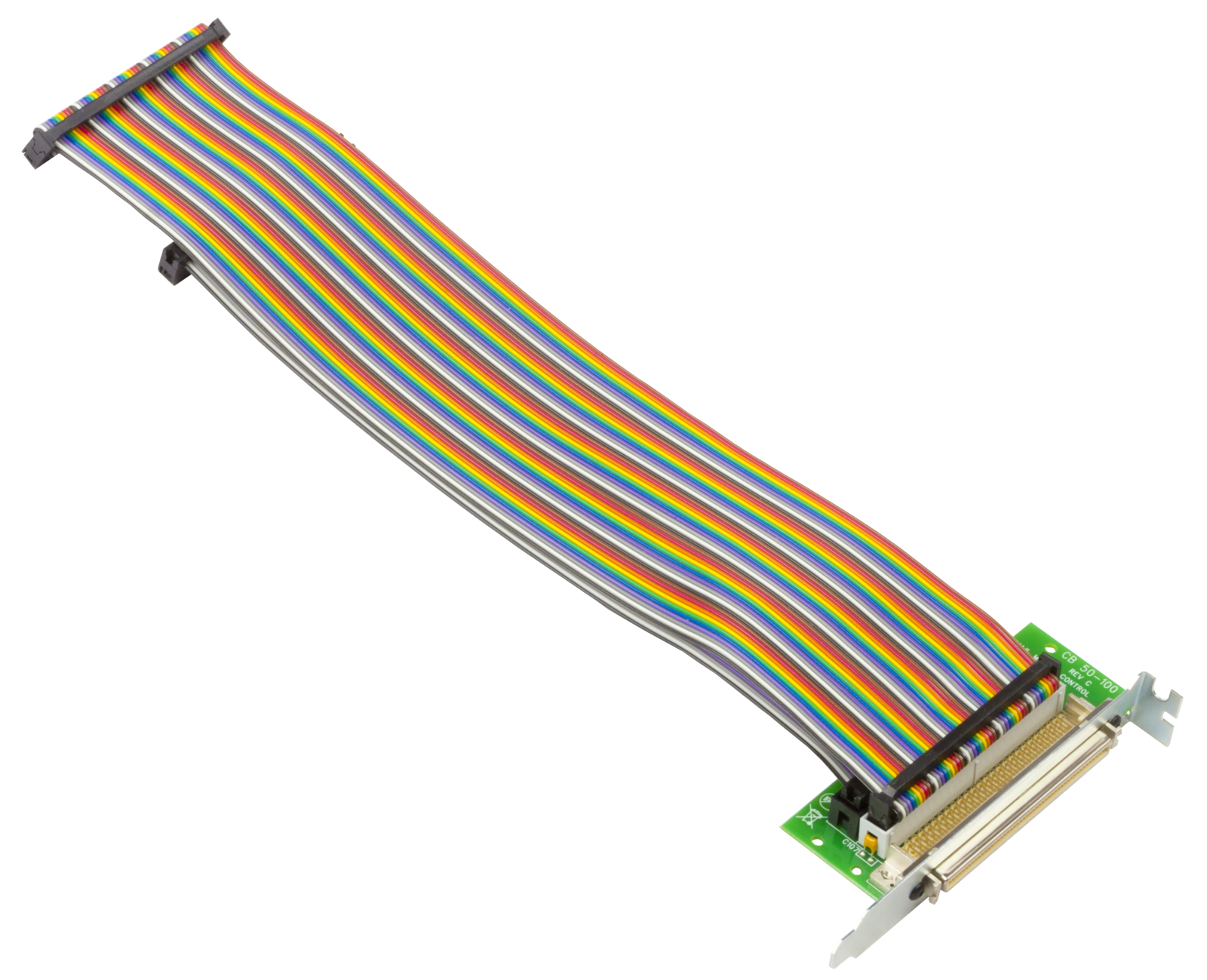

CB-50-100
50-pin to 100-pin (Required for 5-8 axes)
Interconnects
ICM-2900
Interconnect for 4 axis (Free optional flange mount)
ICM-2900-OPTO
ICM with opto outputs (Free optional flange mount)
