Motion Controller
DMC-1405

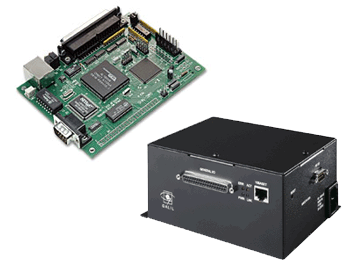

Economical single and dual-axis motion controllers featuring Ethernet 10Base-T and RS232 connectivity. Available as card-level products or in metal enclosures with power supplies.
Don't see exactly what you need? We offer full customization capabilities and can implement any requirements. Talk to our experts →
Specifications
Number of Axes
1-2
Max Encoder Rate (Servo)
12 MHz
Max Encoder Rate (Stepper)
3 MHz
Ethernet Ports
1x 10Base-T
Max RS232 Baud Rate
19.2 kb
Digital Inputs
- 1-axis: 7x TTL
- 2-axis: 3x TTL
Digital Outputs
3x TTL
Analog Inputs
2x 12-bit
Extended I/O
Up to 64 I/O with DB-14064
Concurrent Programs
2
Dimensions (Card)
3.75" x 5.0"
Dimensions (Box)
5.10" x 3.0" x 6.8"
Price List
| Part Number | Description | 1 pc | 100 pc |
|---|---|---|---|
| 16BIT | 16-bit analog inputs | $110 | $70 |
| DMC-1415 | 1-axis motion controller, card | $705 | $475 |
| DMC-1415-box | 1-axis motion controller, box | $935 | $650 |
| DMC-1425-servo | 2-axis servo motion controller, card | $810 | $530 |
| DMC-1425-servo box | 2-axis servo motion controller, box | $1,040 | $700 |
| DMC-1425-stepper | 2-axis stepper motion controller, card | $810 | $530 |
| DMC-1425-stepper box | 2-axis stepper motion controller, box | $1,040 | $700 |
| DMC-34x5 | Distributed Option | $0 | $0 |
| ICM-1460 | Interconnect module | $155 | $100 |
| ICM-1460-OPTO | Opto-isolated interconnect module | $205 | $150 |
