Motion Controller & Drive

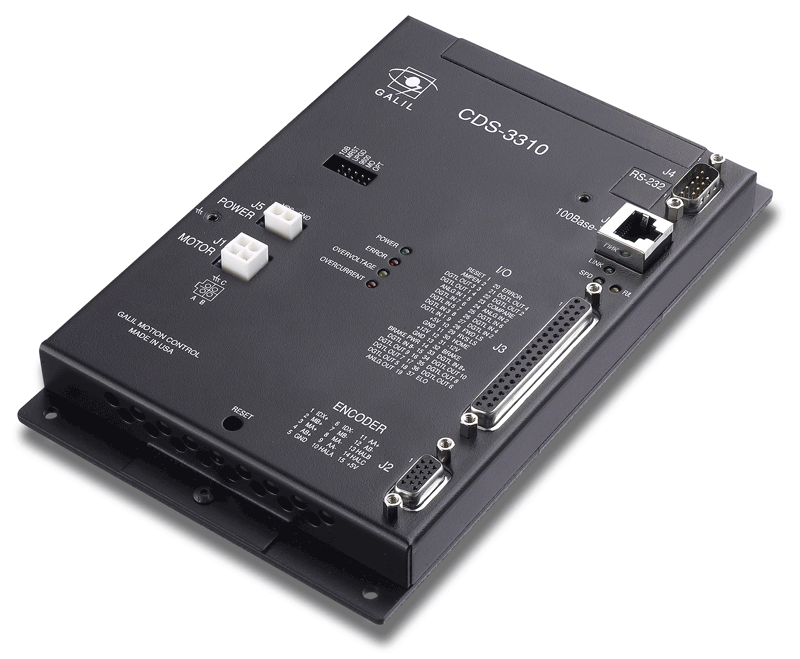

CDS-3310
A single-axis controller and drive system combining a high-performance programmable motion controller with a 500W PWM drive. Supports up to eight networked units communicating as a single controller via Ethernet.
Don't see exactly what you need? We offer full customization capabilities and can implement any requirements. Talk to our experts →
Specifications
Number of Axes
1
Input Voltage
18-72V DC
Drive Capacity
7A continuous, 500W
Max Encoder Rate
12 MHz
Ethernet Ports
1x 10/100 Base-T
Max RS232 Baud Rate
19.2 kb
Digital Inputs
8x TTL
Digital Outputs
10x TTL
Analog Inputs
2x 0-5V
Analog Outputs
1x ±10V
Brake Output
24V, 0.5A
Concurrent Programs
8
Dimensions
5.15" x 8.25"
Mounting
DIN-Rail
Price List
| Part Number | Description | 1 pc | 100 pc |
|---|---|---|---|
| CDS-3310 | Ethernet 1-axis w/ 500W servo drive | $990 | $690 |
| DB-28040 | Digital and Analog I/O Board | $320 | $210 |
| DB-28040-5V | I/O Board with 5V outputs | $320 | $210 |
| SR-19900 | Shunt regulator | $79 | $45 |
